Description
Description

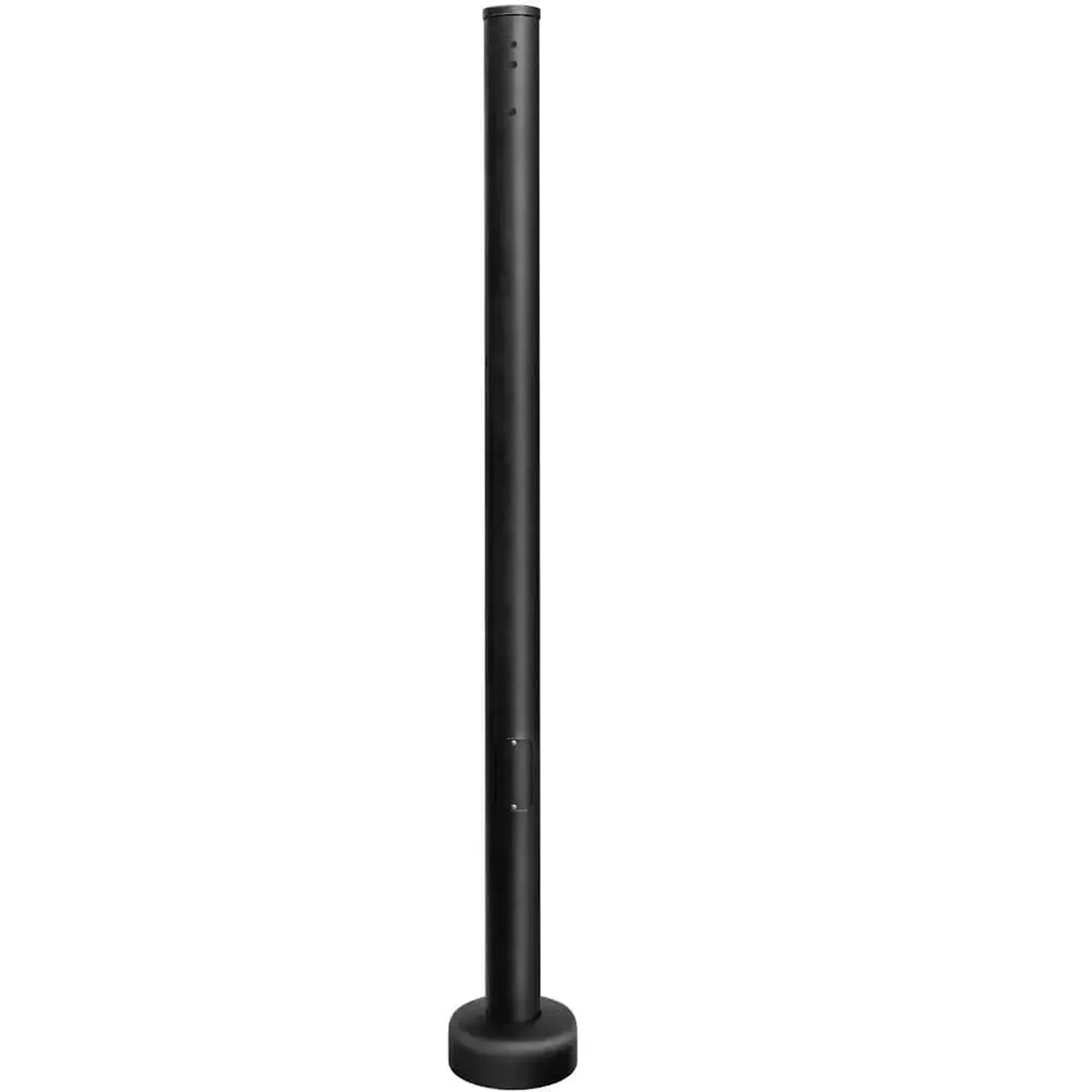

10FT 3 Inch Round Steel Light Pole for Commercial Outdoor Lighting
The Eco Bright Light 10FT Round Steel Light Pole is designed for commercial outdoor lighting installations requiring a durable and compact pole structure. Constructed from high-strength steel tubing, it features a 3-inch round shaft, 11-gauge wall thickness and textured architectural black powder-coated finish. Suitable for walkways, retail centers, campuses, commercial properties and outdoor area lighting projects.
Heavy-Duty Steel Shaft
High-strength steel construction with a 3-inch round shaft and 11-gauge wall thickness for commercial outdoor lighting.
10FT Mounting Height
Compact mounting height supports outdoor lighting applications in walkways, commercial properties and smaller areas.
Architectural Black Finish
Textured black powder coating is baked to enhance paint adhesion, hardness and durability.

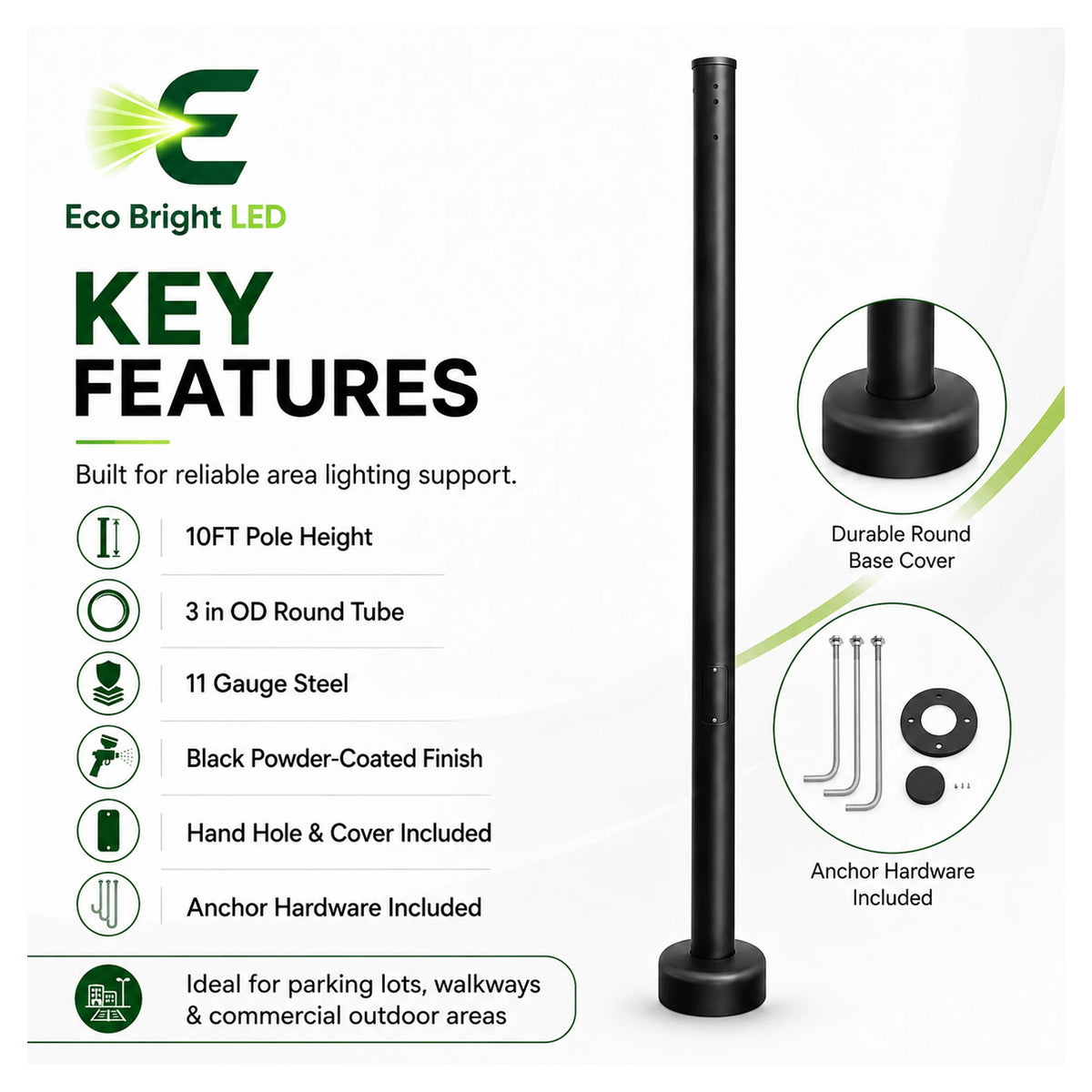

Installation Accessories
Includes anchor bolts, a wiring access handhole with cover and a two-piece formed steel base cover.
Technical Specifications
| Brand | Eco Bright Light |
| Model | RP10FTD3IN |
| Product Type | Round Steel Outdoor Light Pole |
| Mounting Height | 10 FT |
| Pole Diameter | 3 Inch Round |
| Wall Thickness | 11 Gauge |
| Material | High-Strength Steel Tube |
| Finish | Textured Architectural Black Powder Coat |
| Base Plate Bolt Circle | 7.24 in |
| Anchor Bolt Dimensions | 0.63 × 17.1 × 2.99 in (Diameter × Length × Hook) |
| Anchor Bolt Projection | 5.98 in |
| Handhole Dimensions | 2.99 × 5 in |
| Handhole Position | 14.5 in (Drawing Reference) |
| Anchor Bolts | Included |
| Handhole & Cover | Included |
| Base Cover | Two-Piece Formed Steel Base Cover Included |
| Fixture Mounting | Side-Drilled Arm-Mounted Area Lights; Compatible Flood and Post-Top Mounting Configurations |
| Typical Applications | Retail Centers, Industrial Parks, Schools, Transit Facilities, Office Buildings and Medical Facilities |
Wind Load EPA Ratings
Maximum Effective Projected Area (EPA) ratings for the 10FT configuration, based on a 1.3 gust factor.
| 70 mph | 25 ft² |
| 80 mph | 22 ft² |
| 90 mph | 19 ft² |
| 100 mph | 15 ft² |
| 110 mph | 11 ft² |
| Gust Factor | 1.3 |
Important: Fixture EPA, mounting hardware and foundation requirements must be verified according to the applicable design wind speed and local engineering regulations.
Steel Construction & Outdoor Finish
The 10FT pole features a high-strength 3-inch round steel shaft with 11-gauge wall thickness. Its textured architectural black powder-coated finish is baked for improved adhesion, hardness and durability, providing a clean appearance for commercial outdoor lighting installations.
Mounting & Installation Features
The pole supports compatible side-drilled arm-mounted area lighting fixtures and suitable flood or post-top mounting configurations. Included anchor bolts secure the pole to a properly engineered concrete foundation. A handhole and cover provide electrical wiring access, while the two-piece steel base cover helps protect and conceal the installed base.
Why Choose This Round Steel Light Pole?
- 10FT mounting height for commercial outdoor lighting areas.
- Durable 3-inch round steel shaft with 11-gauge wall thickness.
- Textured architectural black powder-coated finish.
- Published EPA ratings support outdoor fixture selection.
- Anchor bolts and two-piece steel base cover included.
- Handhole and cover provide accessible wiring connections.
Ideal Applications

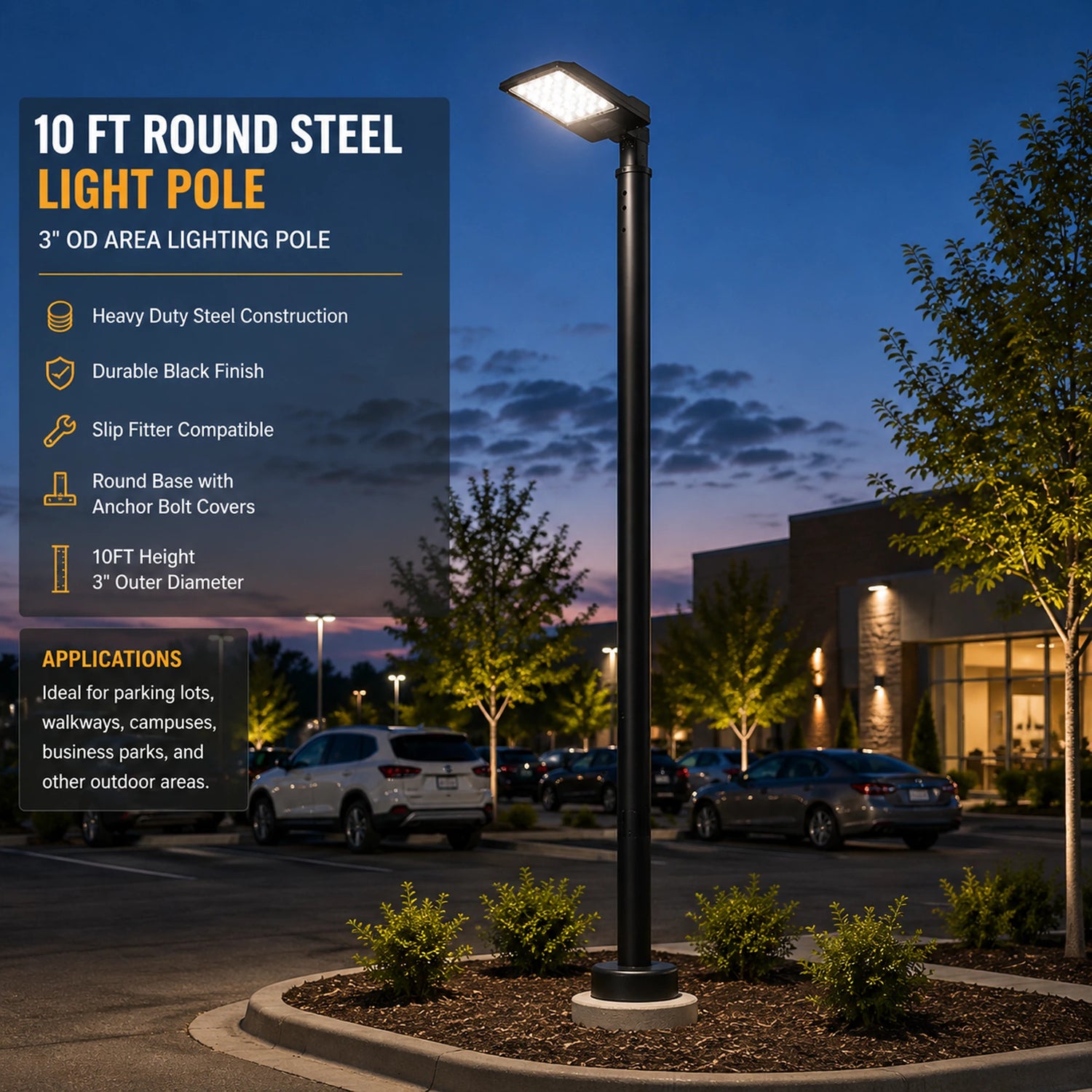

The Eco Bright Light 10FT Round Steel Light Pole is suitable for commercial and institutional outdoor lighting projects requiring a compact steel pole mounting solution. Typical applications include retail centers, walkways, industrial parks, schools, public transit facilities, office buildings and medical facilities.
10FT Round Steel Light Pole | 3 Inch Round Light Pole | Commercial Outdoor Lighting | Black Steel Light Pole | LED Area Light Pole | Walkway Lighting | Parking Area Lighting | Outdoor Pole Lighting
Durable Steel Pole for Commercial Outdoor Lighting
10FT Height • 3" Round Steel • 11 Gauge • Black Powder Coat • Anchor Bolts Included • Commercial Area Lighting
Package Information
| Package Dimensions | Contact for Details |
| Shipping Weight | Contact for Details |
| Pack Quantity | Contact for Details |
| Included Accessories | Anchor Bolts, Handhole & Cover, Two-Piece Steel Base Cover |
