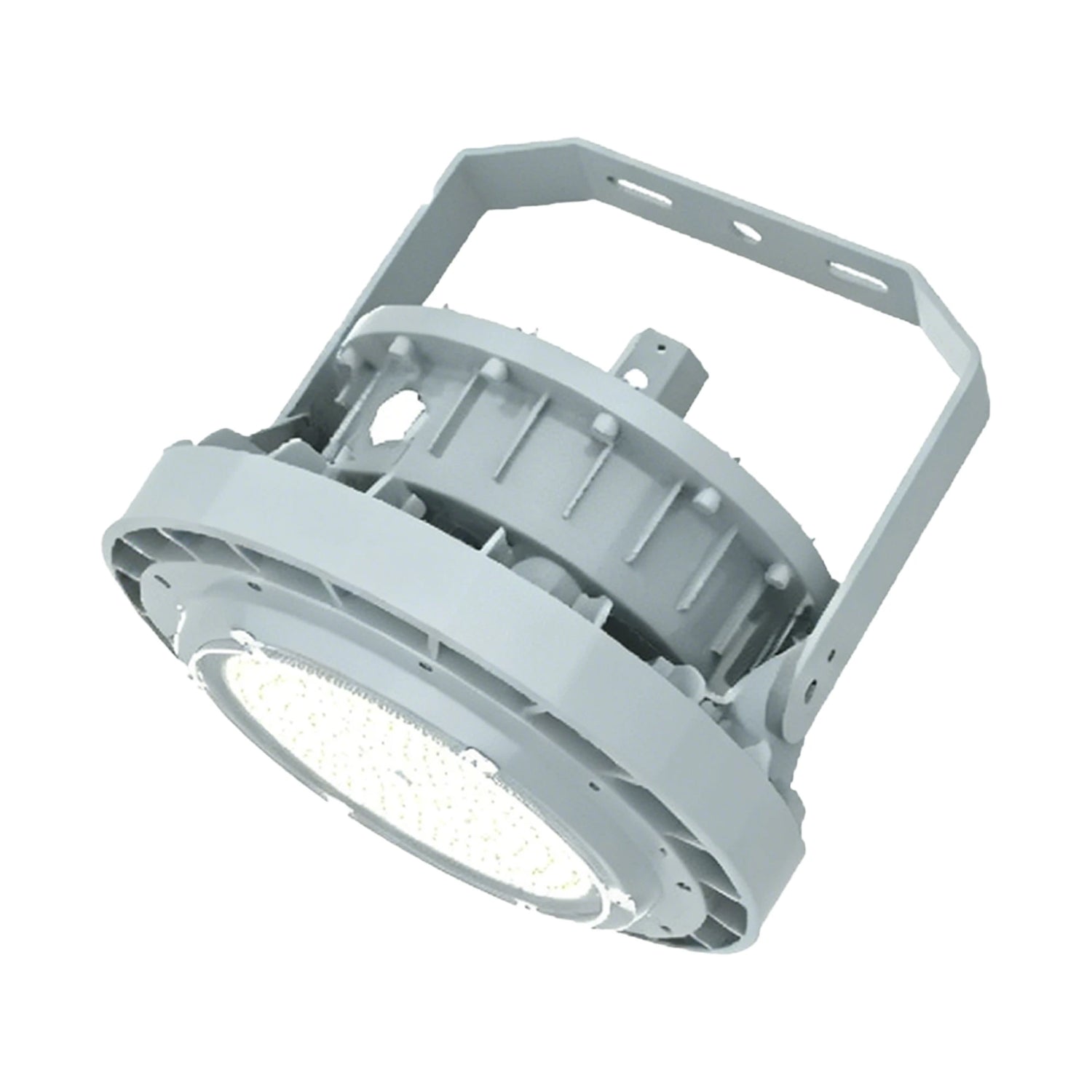

150W LED Explosion Proof High Bay Light 5000K
The Eco Bright Light 150W LED Explosion Proof High Bay delivers 21,000 lumens of bright 5000K daylight for demanding industrial hazardous locations. Featuring Class I Division I protection, 140 lm/W efficiency, AC 200-480V input and rugged copper-free aluminum construction, this C Series fixture is designed for refineries, offshore platforms, chemical facilities and industrial high-bay lighting.
21,000 Lumens
Efficient 150W LED output with 140 lm/W performance and a 120° wide beam.
Class I Division I
Explosion-proof protection for hazardous locations, including Class I Division I, Groups C and D.
Heavy-Duty Construction
Copper-free aluminum housing, tempered glass and stainless steel hardware with IP66 protection.
Industrial Performance
AC 200-480V input, 0-10V dimming and reliable operation in harsh industrial environments.
Technical Specifications
| Brand | Eco Bright Light |
| Series / Model | C Series / EX-150W CYZDA |
| Power | 150W |
| Lumen Output | 21,000 Lumens |
| Luminous Efficiency | 140 lm/W |
| Color Temperature | 5000K |
| CRI | >70 |
| Input Voltage | AC 200-480V |
| Frequency | 50/60Hz |
| Power Factor | >0.95 |
| Beam Angle | 120° |
| Dimming | 0-10V |
| Hazardous Location Rating | Class I Division I, Groups C & D |
| Additional Classifications |
Class I Div 2, Groups A-D; Class II Div 1, Groups E-G; Class II Div 2, Groups F-G; Class III; Class I Zone 1, Group IIB; Class II Zone 21, Group IIIC |
| IP Rating | IP66 |
| Impact Rating |
IK08 (Glass Cover); IK10 (With Optional Wire Guard) |
| Housing Material | Copper-Free Aluminum |
| Lens Material | Tempered Glass |
| Hardware | Stainless Steel |
| Operating Temperature | -40°C to +60°C (T4) |
| Mounting Options | Ceiling / Wall / Hook / Pole |
| Cable Entry | 3/4" NPT Standard |
| Salt Spray Resistance | 1,000 Hours |
| Emergency Backup | Optional |
| Lumen Maintenance | L70 >150,000 Hours at 55°C |
| Compliance | UL 844 / UL 1598 / UL 1598A |
| Warranty | 5 Years |
Key Benefits
- 21,000 lumens of 5000K industrial lighting.
- High-efficiency 140 lm/W LED performance.
- Class I Division I explosion-proof protection.
- AC 200-480V input with 0-10V dimming.
- IP66 corrosion-resistant aluminum construction.
- Multiple mounting options for industrial projects.

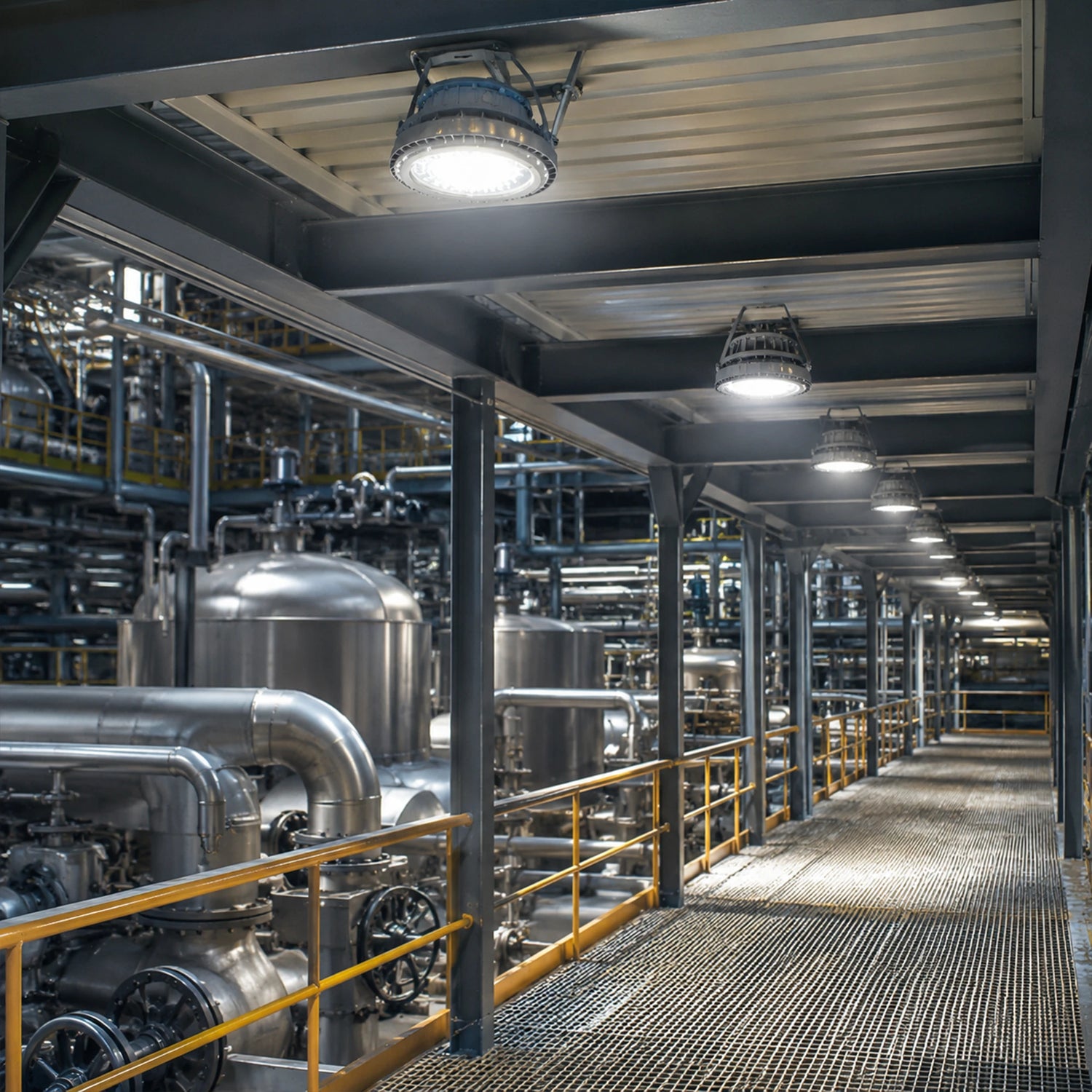

Applications
Designed for hazardous industrial environments requiring dependable high-output illumination.
- Offshore Oil & Gas Platforms
- Petrochemical Refineries
- Chemical Processing Facilities
- Wastewater Treatment Plants
- Industrial Storage Facilities
- Power Plants & Loading Docks
Package Information
| Package Dimensions (L × W × H) | 21 × 20 × 13.5 in |
| Package Weight | 45.6 lbs |
| Quantity per Carton | 1 pc |
Reliable 150W Explosion Proof LED High Bay
21,000 Lumens • 5000K • 140 lm/W • Class I Division I • AC 200-480V • IP66 • 5-Year Warranty
