2-Arm Steel Bullhorn Bracket 2-3/8 in Tenon for Area Lights

Regular price $86.98
Shipping calculated at checkout.

Expected to ship in 1-2 Business Days

Description

2-Arm Steel Bullhorn Bracket 2-3/8 in Tenon for Area Lights

Dual Arm Design 60mm Tenons Q235 Steel 30.23 Inch Span Outdoor Powder Coating

The Eco Bright LED 2-Arm Steel Bullhorn Bracket is designed to support a two-fixture LED area lighting arrangement on a suitable pole or mounting structure. Its curved dual-arm profile provides two separated mounting ends with a drawing-specified 60mm (2.36-inch) outside diameter, commonly described as nominal 2-3/8-inch tenons. Made from Q235 steel with a hot-dip zinc treatment and exterior powder-coated finish, the BHT180D bracket is intended for outdoor lighting installation projects where mounting dimensions and fixture compatibility have been verified.

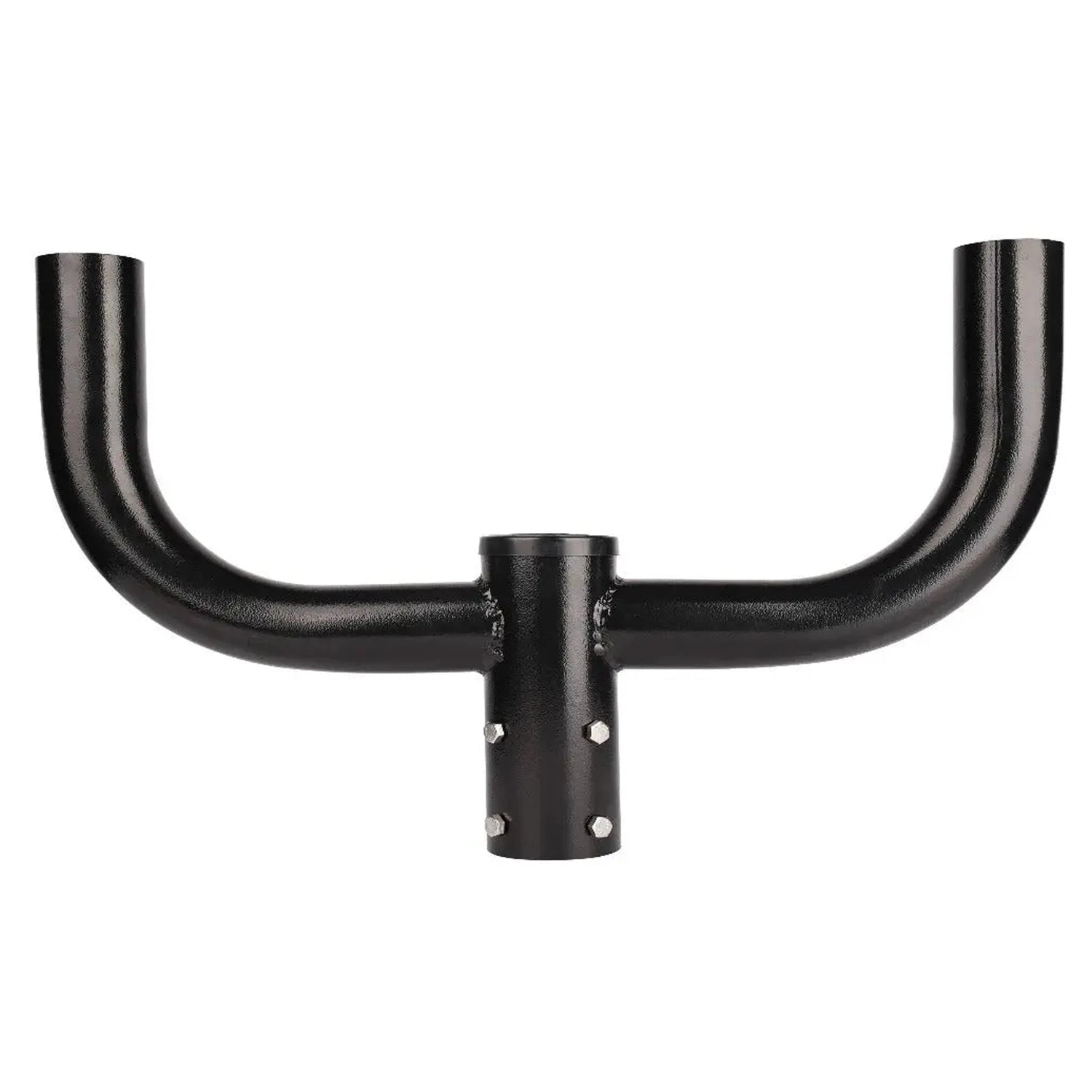

Dual-Arm Bullhorn Layout

Two curved arms provide separate mounting positions for a pair of compatible outdoor light fixtures.

60mm Mounting Tenons

Each end is specified as 60mm (2.36 in) outside diameter; confirm fixture slipfitter fit before ordering.

Q235 Steel Construction

Steel construction is specified in the engineering drawing for the BHT180D bracket.

Outdoor Surface Treatment

The drawing calls for hot-dip zinc treatment followed by an exterior powder-coated surface.

Technical Specifications

Brand Eco Bright LED
Drawing Model BHT180D
Product Type 2-Arm Steel Bullhorn Bracket / Area Light Mounting Adapter
Arm Configuration Two curved mounting arms
Material Q235 Steel
Tenon Outside Diameter 60mm (2.36 in), nominal 2-3/8 in
Drawing Horizontal Dimension 768mm (30.23 in)
Center Mounting Tube Diameter 76mm (3 in), per drawing
Center Mounting Section Height 145mm (5.708 in), per drawing
Steel Wall Thickness 4mm (0.157 in), at the indicated location
Drawing Hole / Fastener Callouts 6 × M8 callouts; 2 × 5mm holes; refer to engineering drawing for placement
Surface Treatment Hot-dip zinc treatment with exterior powder coating
Finish Color As specified by customer requirement in the drawing
Intended Use Outdoor area-light mounting projects with verified fixture and pole compatibility
Load Rating Not specified in supplied drawing

Practical Dual-Arm Mounting Design

  • Two mounting ends allow a dual-fixture lighting arrangement.
  • Curved arms separate the fixtures around the center mounting section.
  • Each tenon is dimensioned at 60mm outside diameter.
  • The drawing identifies a 768mm (30.23 in) horizontal dimension.
  • Q235 steel construction is defined in the product drawing.
  • Hot-dip zinc and powder-coating processes are specified for exterior finishing.
  • Center mounting section includes documented fastener locations.
  • Finish color can be specified according to project requirements.

Two-Tenon Configuration for Area Lighting

The bullhorn bracket offers two upward-facing mounting ends for a paired LED area light configuration. The 60mm (2.36-inch) tenon outside diameter is shown on the drawing. Before installation, verify the slipfitter opening, insertion depth, fastener engagement and total supported load for the selected luminaires.

Q235 Steel with Exterior Surface Protection

The engineering notes specify Q235 steel, a hot-dip zinc surface process and exterior powder coating. Together, these construction details define the bracket's intended outdoor finish. The drawing does not provide a corrosion-test rating or a verified service-life value.

Mounting Dimensions and Installation Considerations

The engineering drawing calls out a 768mm (30.23-inch) horizontal dimension, a 76mm (3-inch) center mounting tube diameter and a 145mm (5.708-inch) center section dimension. Hole and fastener details are also indicated. Confirm the dimensions against the actual pole, fixture adapters and installation hardware. Installation should be carried out using the applicable engineering drawing and the fixture manufacturer's instructions.

Outdoor Lighting Applications

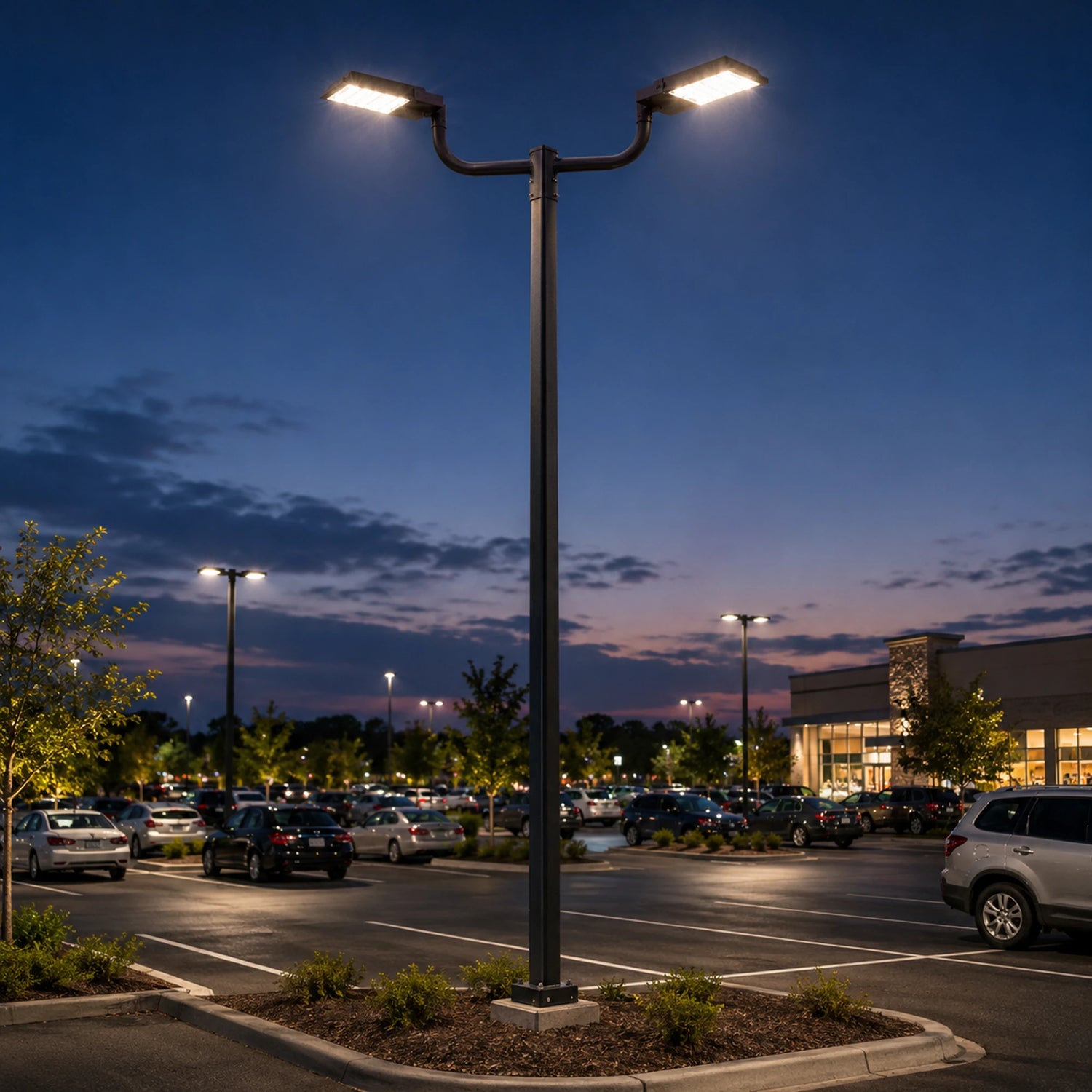

The two-arm bullhorn layout is intended for use in compatible outdoor area-light installations, including parking areas, commercial properties, access roads and other locations requiring a paired luminaire arrangement. Suitability depends on site wind loading, mounting conditions and the verified weight and wind area of the selected fixtures.

Build a Two-Fixture Outdoor Lighting Mount

Dual Curved Arms • 60mm (2.36 in) Tenons • Q235 Steel • 768mm (30.23 in) Drawing Span • Hot-Dip Zinc Treatment • Exterior Powder-Coated Finish

Package Information

Product 2-Arm Bullhorn Bracket, drawing model BHT180D
Hardware Shown in Drawing 6 bolts, 2 additional bolts and 1 metal rain cover (as depicted)
Package Dimensions & Weight Not specified in supplied drawing
Included Hardware Confirm actual shipped contents before ordering
