4 Inch Square Pole Tenon Adapter 2-3/8 Slip Fitter Area Light

Regular price $31.98
Shipping calculated at checkout.

Expected to ship in 1-2 Business Days

Description

4 Inch Square Pole Tenon Adapter with 2-3/8 Inch Slip Fitter Mount

4" Square Base 60mm Tenon Q235 Steel Hot-Dip Galvanized 4 M8 Bolts

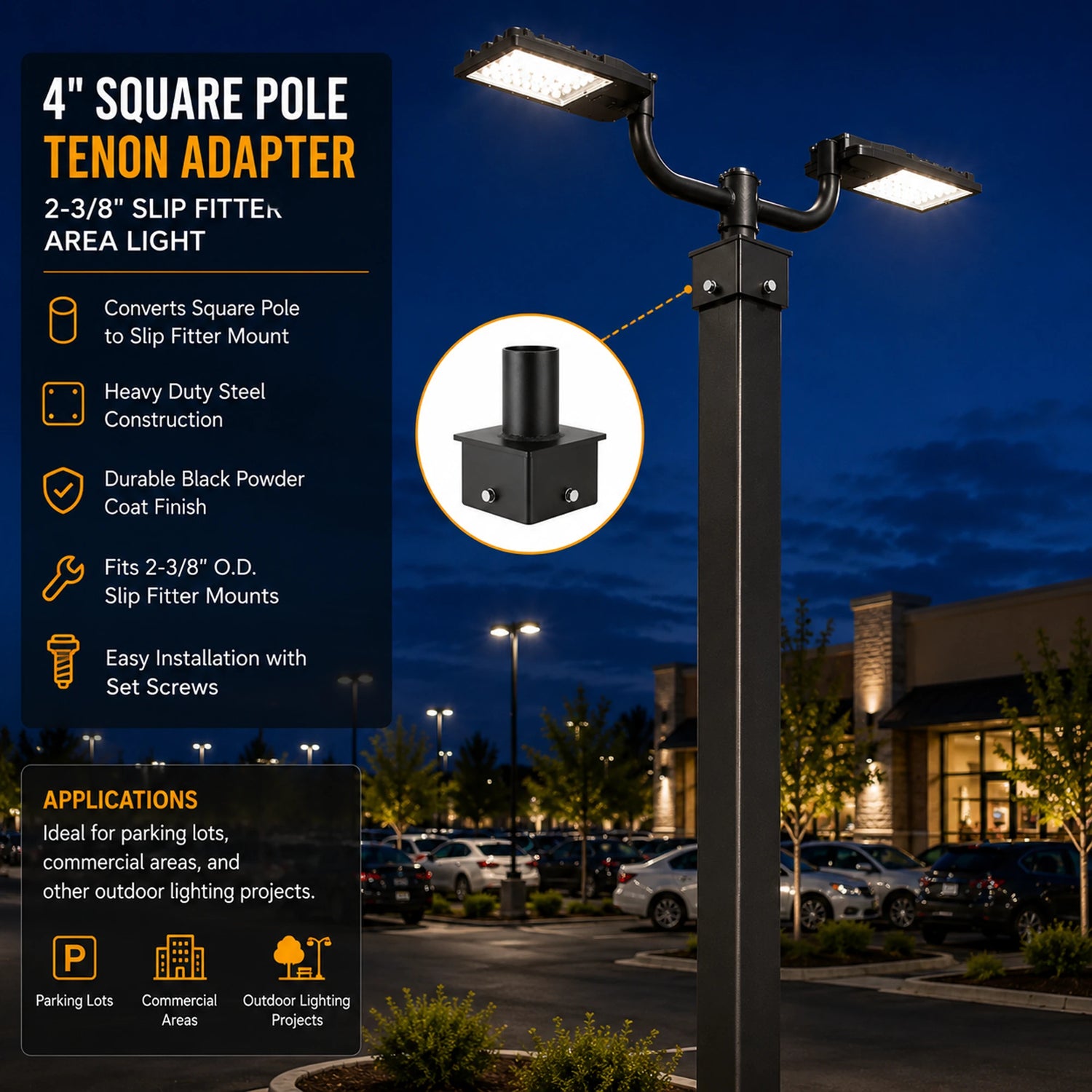

The Eco Bright Light 4 Inch Square Pole Tenon Adapter provides a practical mounting solution for compatible LED area lights and parking lot lighting fixtures. Manufactured from Q235 steel, this adapter features a 60mm (approximately 2-3/8 inch) outside diameter vertical tenon, a square mounting base and hot-dip galvanized surface treatment with outdoor powder coating. Designed for commercial outdoor lighting installations requiring a compatible square pole mounting connection.

Square Pole Mounting

Square base design with 102mm outer dimensions and a 90mm inner opening for compatible pole installations.

60mm Vertical Tenon

Integrated 60mm outside diameter tenon provides a connection for compatible slipfitter-style area lights.

Q235 Steel Construction

Durable steel construction provides a rigid mounting structure for commercial outdoor lighting projects.

Outdoor Surface Protection

Hot-dip galvanized treatment and exterior powder coating provide additional protection for the steel surface.

Technical Specifications

Brand Eco Bright Light
Product Type 4 Inch Square Pole Tenon Adapter
Drawing Reference 4" SQUARE BASE
Material Q235 Steel
Mounting Configuration Square Pole Base with Vertical Tenon
Tenon Outside Diameter 60mm (2.362 in)
Tenon Inside Diameter 53mm (2.086 in)
Tenon Height 102mm (4.015 in)
Overall Height 185mm (7.283 in)
Base Section Height 79mm (3.11 in)
Square Base Outer Size 102 × 102mm (4.015 × 4.015 in)
Square Base Inner Size 90 × 90mm (3.543 × 3.543 in)
Mounting Bolt Quantity 4 PCS
Bolt Specification M8 × 1.25 Thread, 20mm Length
Surface Treatment Hot-Dip Galvanized with Outdoor Powder Coating
Finish Color According to Customer Requirements
Fixture Compatibility Compatible Slipfitter-Mounted LED Area Lights and Parking Lot Lights

Square Pole Mounting Design

The adapter features a square steel mounting base measuring 102 × 102mm externally, with a 90 × 90mm inner opening. Four M8 mounting bolts are specified in the technical drawing. The compact design supports pole-top mounting on appropriately sized and structurally suitable square poles.

Installation Note: Verify the actual pole outside dimensions, mounting fit and required fastening arrangement before installation.

60mm Tenon for LED Area Lights

The vertical tenon measures 60mm in outside diameter, 53mm in inside diameter and 102mm in height. It provides a mounting connection for compatible slipfitter-style LED area lights, parking lot lights and commercial outdoor fixtures. Confirm the fixture mounting interface and structural load requirements before installation.

Why Choose This Square Pole Adapter?

  • Square mounting base for compatible outdoor lighting poles.
  • 60mm vertical tenon supports compatible slipfitter-mounted fixtures.
  • Q235 steel construction provides a durable mounting structure.
  • Hot-dip galvanized surface with outdoor powder coating.
  • Four M8 mounting bolts specified in the product drawing.
  • Suitable for commercial lighting installations and retrofit projects.

Ideal Applications

The Eco Bright Light 4 Inch Square Pole Tenon Adapter is suitable for commercial exterior lighting projects using compatible square mounting poles and slipfitter-style LED fixtures. Typical applications include parking lots, commercial properties, retail centers, warehouses, industrial yards and outdoor lighting upgrades.

4 Inch Square Pole Adapter | 2-3/8 Inch Tenon Adapter | LED Area Light Mount | Parking Lot Light Bracket | Square Pole Slip Fitter Adapter | Commercial Outdoor Lighting | Shoebox Light Mounting | Pole Light Retrofit

Durable Square Pole Mounting for LED Area Lights

4" Square Base • 60mm Tenon • Q235 Steel • 185mm Height • Hot-Dip Galvanized • Outdoor Powder Coat • 4 M8 Bolts
