Description
Description

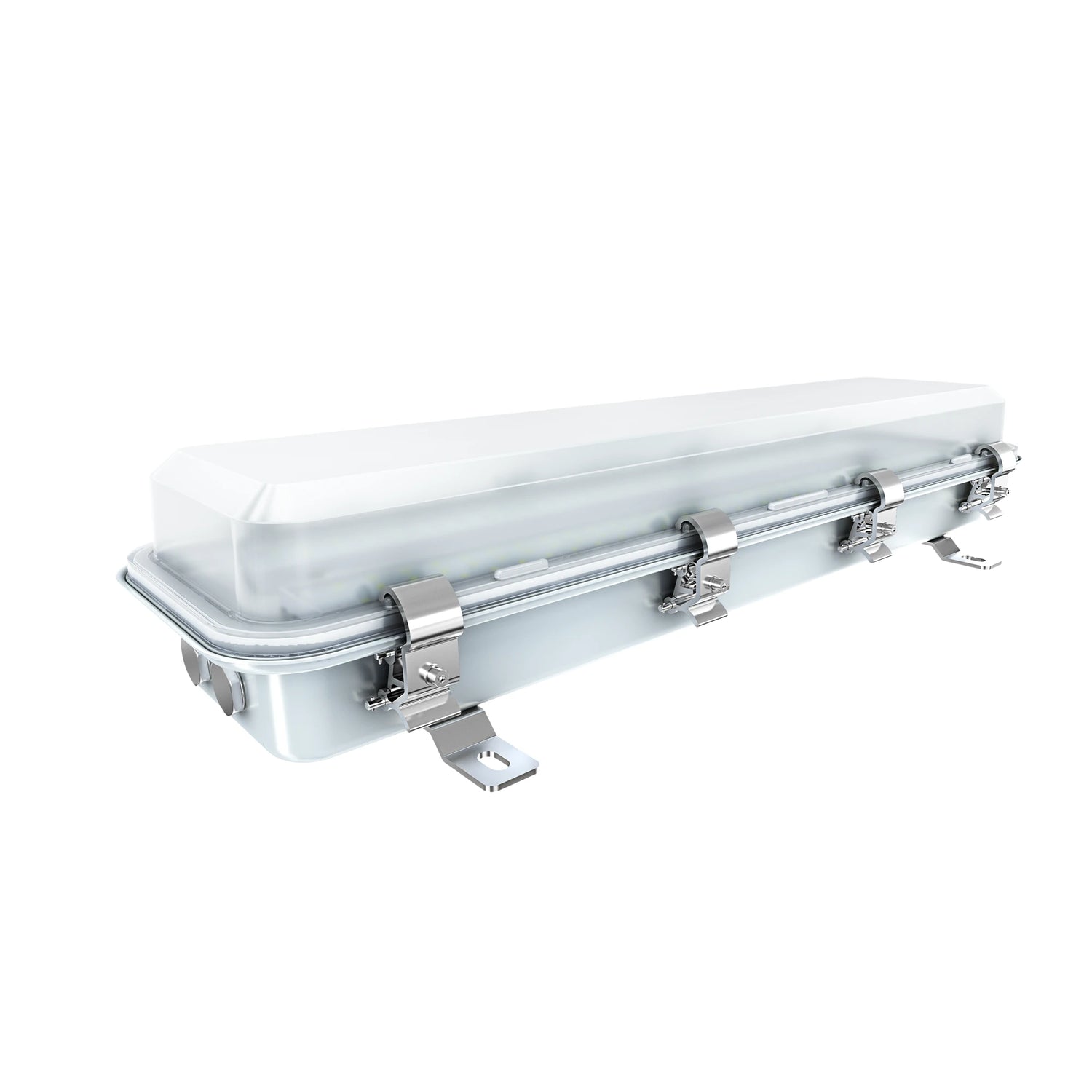

40W LED Explosion Proof 1x2 Vapor Proof Light
The Eco Bright Light 40W LED Explosion Proof 1x2 Vapor Proof Light is a high-performance industrial linear luminaire designed for demanding hazardous locations. Part of the EX-R R2 Series, this 2-foot fixture delivers approximately 7,255 lumens of 5000K daylight illumination while combining a corrosion-resistant stainless steel housing, impact-resistant polycarbonate lens and dependable IP66 protection. Engineered for Class I Division II hazardous environments, it offers excellent durability, versatile mounting options and convenient maintenance for industrial facilities, wastewater treatment plants, marine applications and petrochemical processing areas.
Class I Division II Protection
Designed for C1D2 hazardous locations where flammable gases or vapors may be present under abnormal operating conditions. Supports safer, more reliable industrial lighting installations.
7,255-Lumen LED Performance
Produces approximately 7,255 lumens at 40W and 5000K based on published photometric testing. A wide 120° beam provides uniform illumination for industrial workspaces.
Corrosion-Resistant Construction
Features a SUS304 stainless steel enclosure with protective epoxy finish. Stainless steel latches and a durable polycarbonate lens withstand demanding environmental conditions.
IP66 & IK10 Protection
IP66 ingress protection resists dust and powerful water jets, while IK10 impact resistance provides additional durability for wet, dusty and industrial environments.
Technical Specifications
| Brand | Eco Bright Light |
| Product Series | EX-R R2 Series |
| Product Type | 1x2 LED Explosion Proof Vapor Proof Light |
| Rated Power | 40 Watts |
| Series Selectable Power | 20W / 30W / 40W |
| Luminous Flux | Approx. 7,255 Lumens (40W / 5000K Test Configuration) |
| Tested Efficacy | 179.62 lm/W at 5000K |
| Color Temperature | 5000K (Daylight White) |
| Series CCT Options | 4000K / 5000K / 6500K |
| Color Rendering Index | CRI >70 |
| Input Voltage | 120-347VAC / 277-480VAC (Driver Configuration Dependent) |
| Input Frequency | 50/60Hz |
| Power Factor | >0.95 at 120VAC |
| Beam Angle | 120° Nominal |
| Dimming | 1-10V Dimmable (External DC Dimming Circuit Required) |
| Hazardous Location Rating | Class I Division II (C1D2) |
| Housing Material | SUS304 Stainless Steel |
| Optional Housing Material | SUS316 Stainless Steel |
| Housing Finish | White RAL9016 Baked-On Epoxy Finish |
| Lens Material | UV-Stabilized Clear Polycarbonate |
| Optional Lens | Frosted Polycarbonate |
| Gasket Material | Silicone Rubber |
| Latch Material | Stainless Steel |
| Ingress Protection | IP66 |
| Impact Protection | IK10 |
| Vibration Rating | 3G |
| Mounting Options | Surface Mount / Pendant or Rope Mount / Optional Pole Mount |
| Cable Entries | 2 × M20 / 2 × 3/4-inch NPT |
| LED Type | High-Efficiency Surface-Mount LEDs |
| Emergency Backup | Optional, Minimum 90 Minutes |
| Microwave Sensor | Optional |
| Service Life | Up to 50,000 Hours |
| Salt Spray Resistance | 500 Hours |
| Fixture Warranty | 5-Year Limited Warranty |
Specifications are based on EX-R R2 Series manufacturer documentation. Luminous output is based on the 40W / 5000K tested configuration. Voltage, optional functions and other performance characteristics depend on the selected variant.
Product Dimensions
| Fixture Series | R2 / 2-Foot Linear |
| Overall Length | 698 mm (27.48 in) |
| Fixture Width | 220 mm (8.66 in), Overall |
| Fixture Body Height | 132 mm (5.20 in) |
| Mounting Hole Spacing | 480 mm (18.89 in) |
| Installation Type | Linear Surface / Pendant / Rope Mounting |
Product dimensions refer to the R2 configuration shown in the manufacturer's technical drawing. Optional mounting accessories may affect overall installed dimensions.
Hazardous Location Safety & Compliance
The EX-R R2 Series is engineered for industrial locations requiring specialized hazardous-area lighting. Its Class I Division II classification supports use in locations where flammable gases or vapors are not normally present in ignitable concentrations but may occur under abnormal operating conditions.
The manufacturer's EX-R Series specification references UL 844 hazardous-location requirements, UL 1598 luminaire standards, UL 1598A marine outside-type applications and UL 8750 LED equipment safety requirements.
The fixture also combines IP66 dust and water protection with IK10 mechanical impact resistance, offering robust enclosure protection for demanding industrial installations.
Final hazardous-location suitability, including gas groups, temperature class and permissible ambient conditions, must be verified against the certification marking of the exact fixture configuration before installation.
High-Efficiency LED Performance
The 40W EX-R R2 LED vapor proof fixture delivers approximately 7,255 lumens in its 5000K configuration, based on the manufacturer's published testing data.
A nominal 120° beam angle provides broad illumination for production floors, industrial corridors, equipment rooms and maintenance workstations.
High-efficiency LED technology helps reduce power consumption compared with many conventional industrial lighting systems, while providing dependable illumination and extended operating life.
Stainless Steel Corrosion-Resistant Construction
The fixture features a SUS304 stainless steel housing with a durable white RAL9016 epoxy finish, designed to withstand environmental exposure in demanding industrial installations.
A clear, UV-stabilized polycarbonate lens provides excellent impact resistance while protecting the internal LED components. Silicone rubber gaskets help maintain the enclosure's protective seal.
Stainless steel quick-release latches allow easier access during inspection and servicing. The replaceable LED light-strip design further supports long-term maintenance and operational flexibility.
Selectable Power & Color Temperature
The EX-R R2 Series incorporates selectable power and color temperature functionality. Three power settings are supported: 20W, 30W and 40W.
Color temperature options include 4000K neutral white, 5000K daylight and 6500K cool white.
These configuration options allow compatible fixtures to be adapted to different industrial lighting requirements. This product listing is specified at 40W and 5000K.
Power and color temperature adjustments must follow the manufacturer's operating instructions. Changes to these settings will affect the fixture's light output and power consumption.
IP66 Waterproof & IK10 Impact Protection
IP66-rated construction protects against dust ingress and powerful water jets, making this fixture suitable for industrial environments exposed to moisture, dust and frequent cleaning.
IK10 impact resistance provides additional protection against mechanical impacts, supporting dependable performance in demanding workspaces.
The combination of corrosion-resistant stainless steel, durable polycarbonate optics and sealed enclosure construction makes this linear light an effective solution for challenging industrial conditions.
Flexible Installation & Maintenance

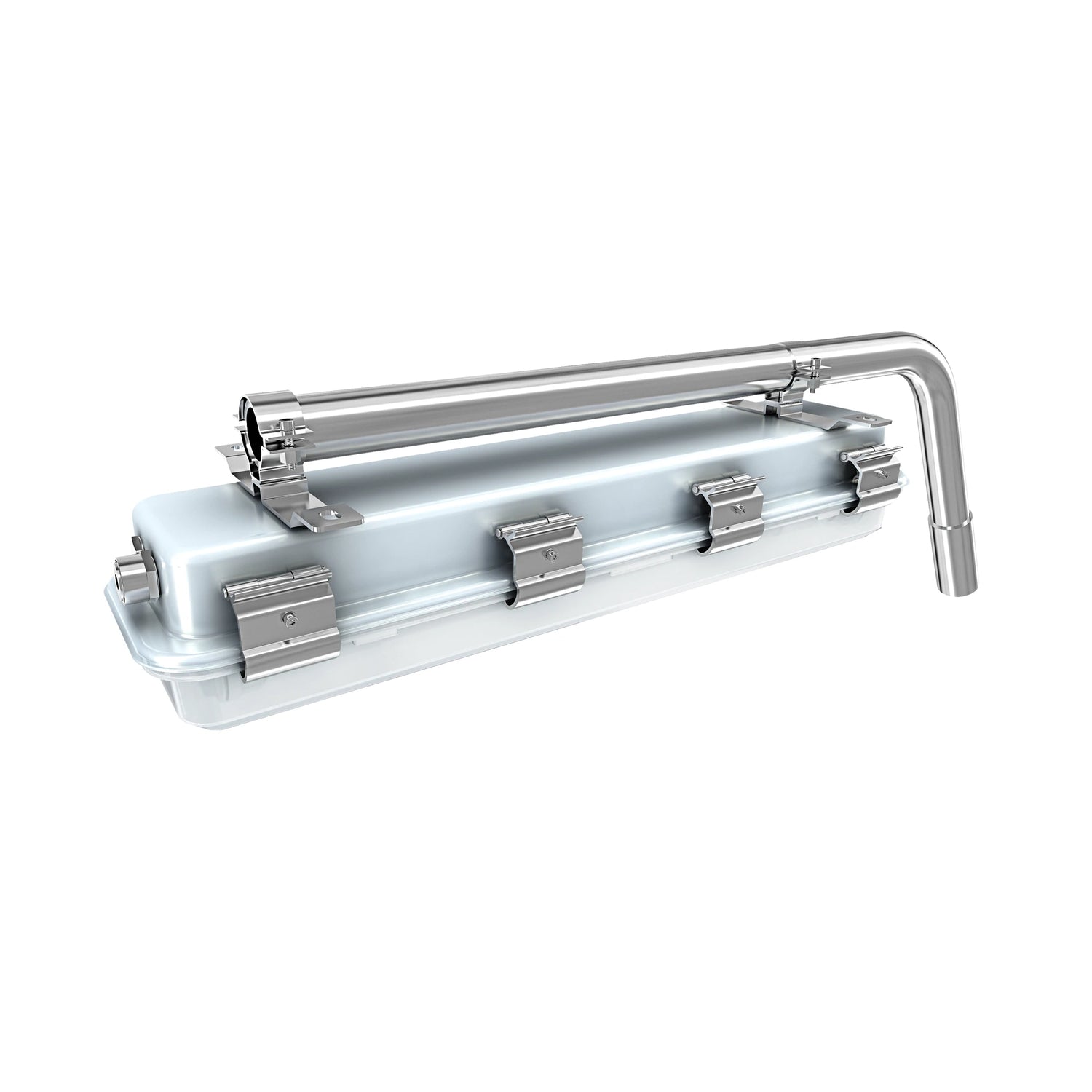

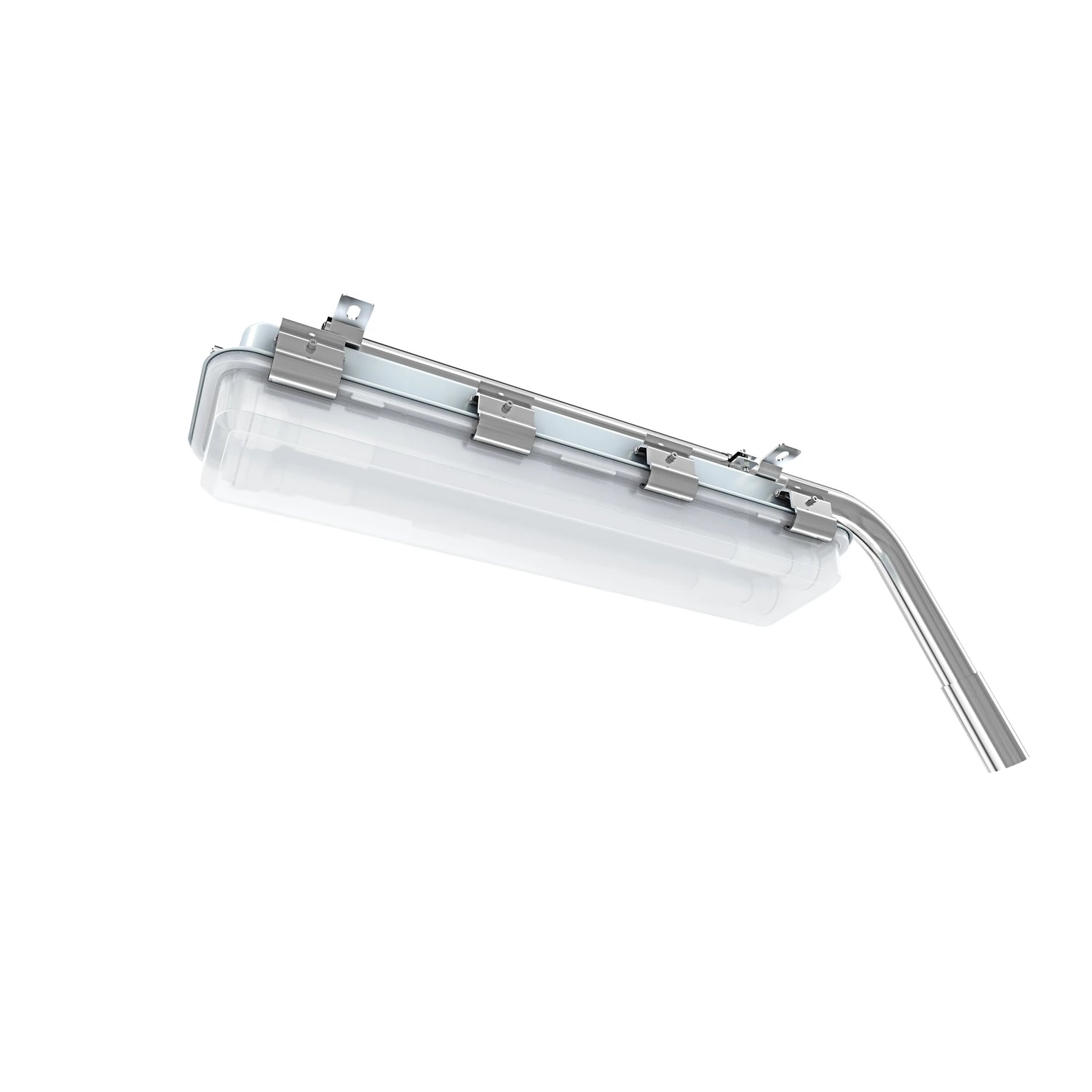

The EX-R R2 Series supports fixed surface mounting and pendant or rope mounting configurations. Optional pole-mounting hardware is available separately for specialized installation requirements.
Stainless steel mounting hardware and quick-release latches simplify installation and routine servicing.

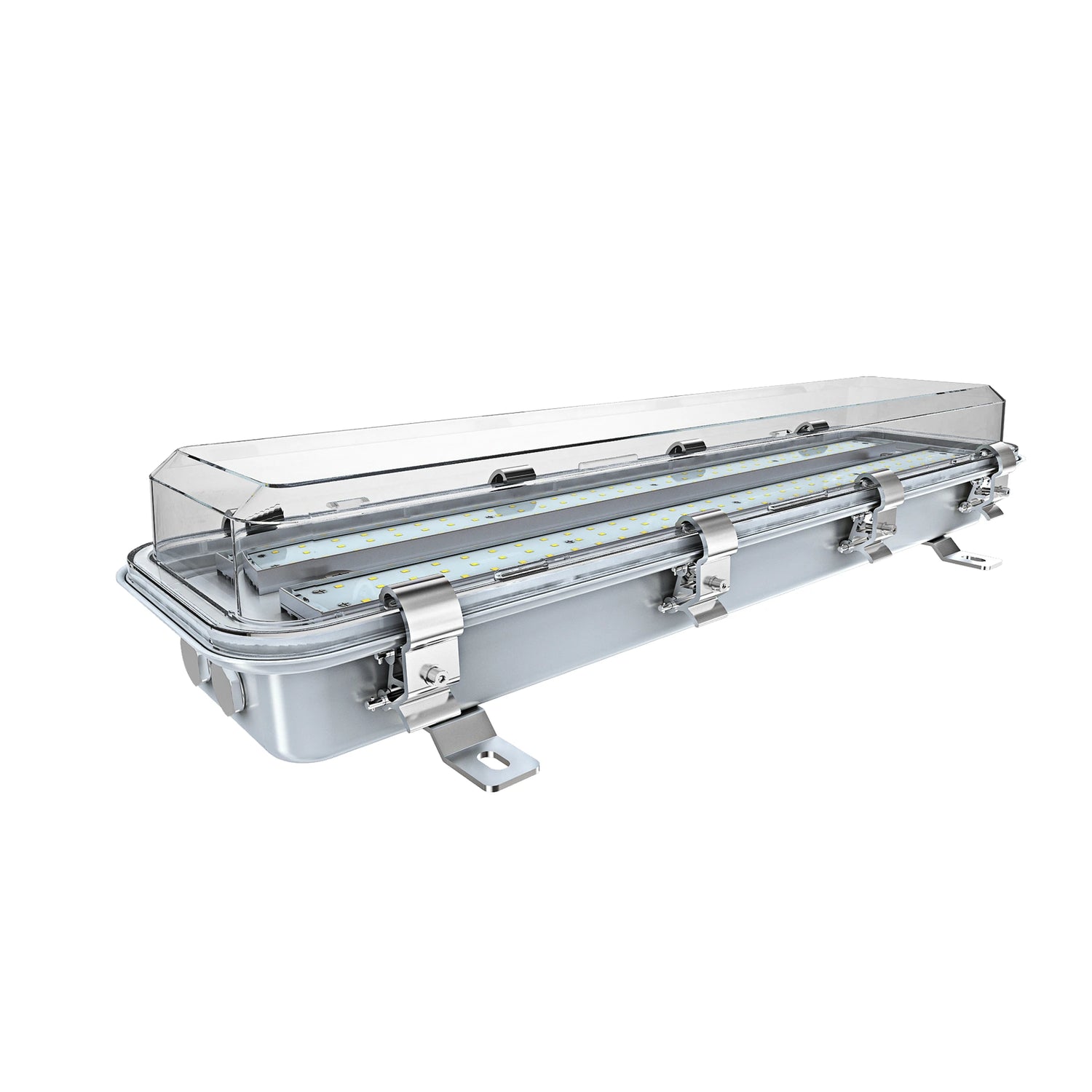

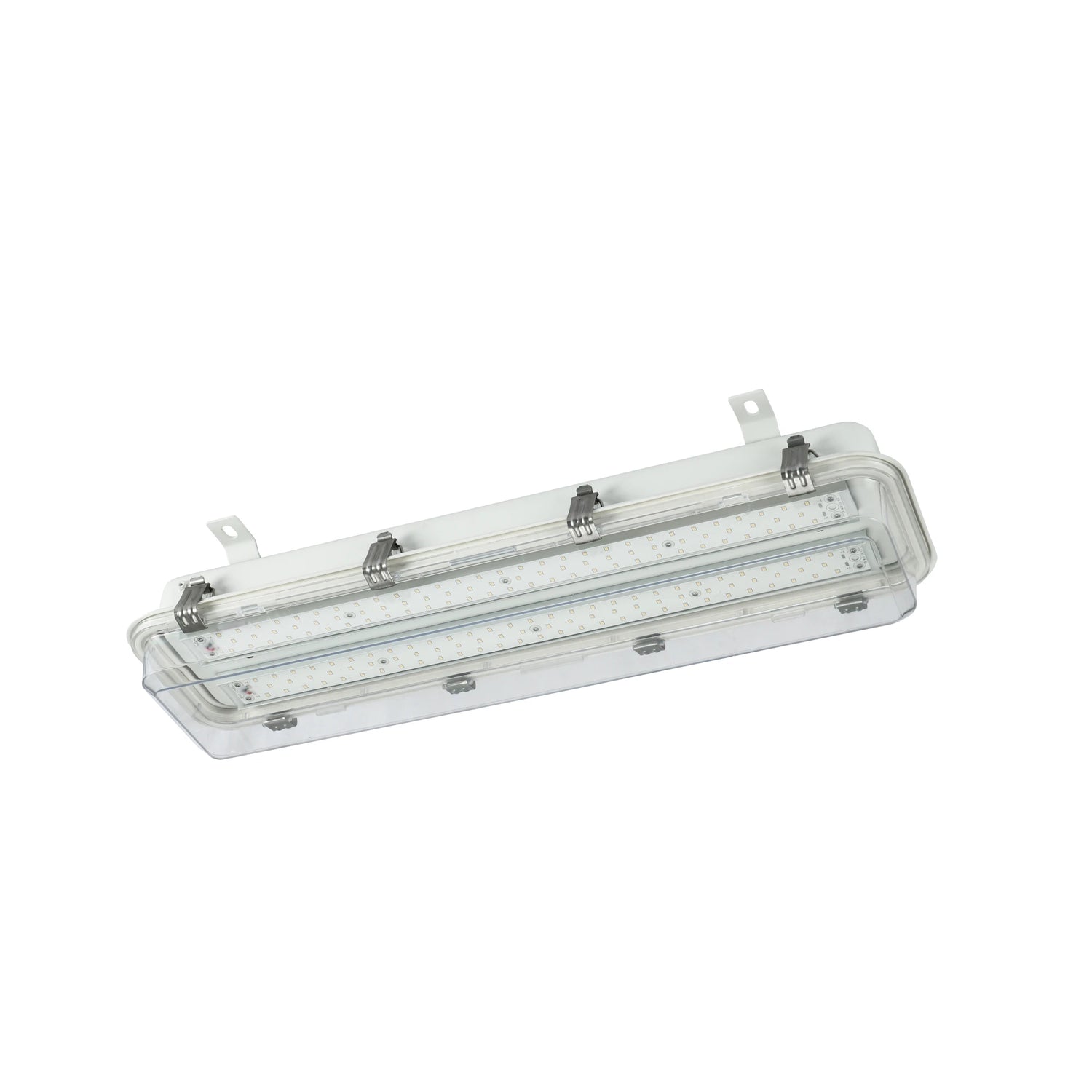

Replaceable LED light strips help reduce maintenance complexity, while the compact linear format supports replacement of conventional industrial strip fixtures.
Key Product Benefits
- Class I Division II hazardous-location design.
- 40W high-efficiency LED configuration.
- Approximately 7,255 lumens at 5000K.
- Wide 120° industrial illumination.
- Durable SUS304 stainless steel enclosure.
- IP66 protection against dust and water jets.
- IK10 impact-resistant polycarbonate lens.
- Selectable power and color temperature.
- Compatible with 1-10V dimming controls.
- Stainless steel quick-release latches.
- Replaceable LED light-strip assembly.
- Multiple industrial mounting options.
- Up to 50,000 hours of service life.
- 5-year limited fixture warranty.

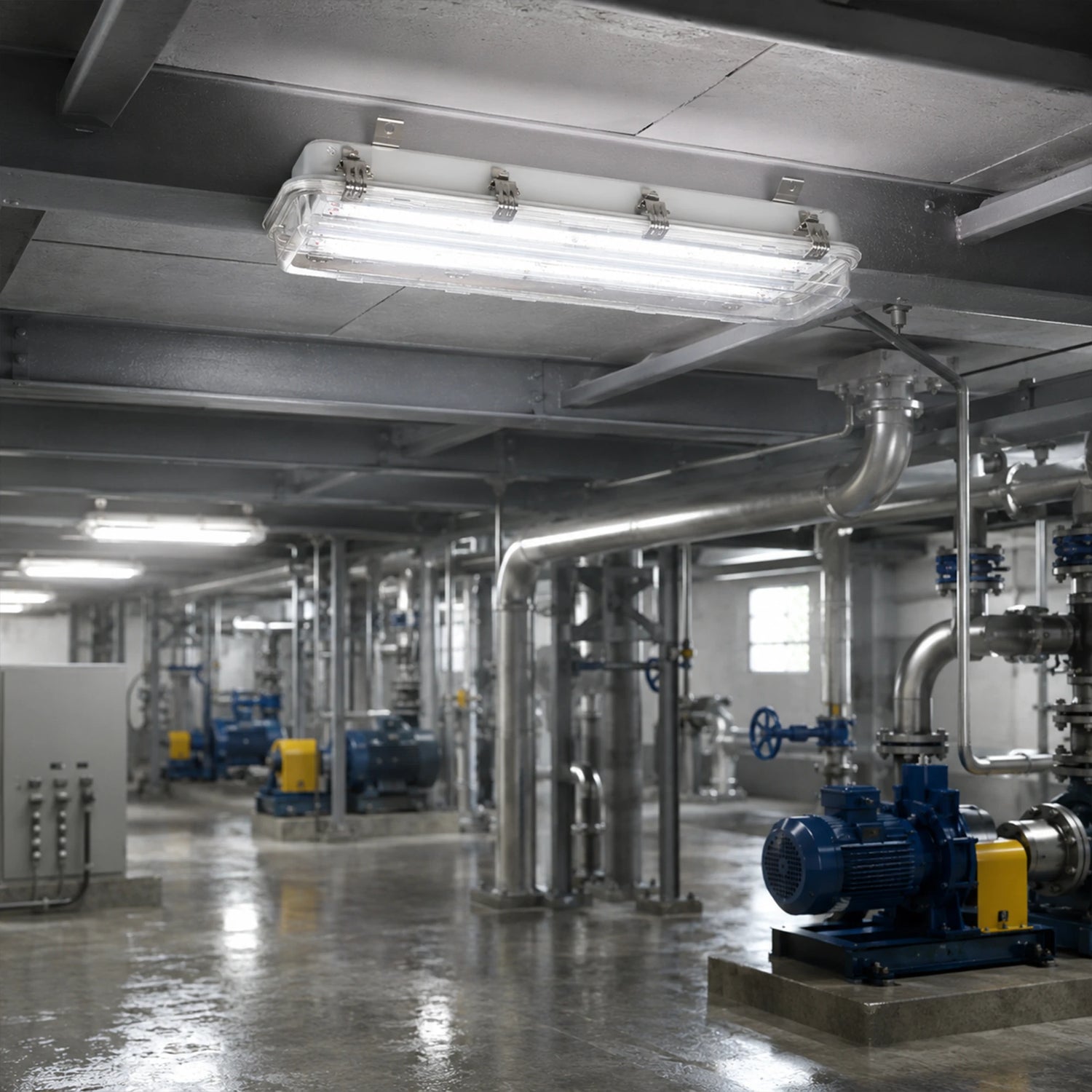

Recommended Industrial Applications
Designed for hazardous and demanding industrial environments, the 40W EX-R R2 LED vapor proof light is suitable for a wide range of commercial and industrial applications.
- Food Processing Facilities
- Water & Wastewater Treatment Plants
- Petrochemical Processing Facilities
- Marine Vessels & Port Facilities
- Industrial Equipment Rooms
- Production & Manufacturing Areas
- Pulp & Paper Production Facilities
- Industrial Maintenance Corridors
- Offshore Industrial Environments
- Chemical Processing Facilities
Long-Term Reliability & Warranty
The EX-R R2 Series features an LED service life of up to 50,000 hours and is backed by a 5-year limited fixture warranty.
Its stainless steel enclosure, durable polycarbonate lens and replaceable LED assembly support reliable operation and simplified maintenance in challenging industrial environments.
Reliable LED Lighting for Hazardous Environments
40W • 7,255 Lumens • 5000K • C1D2 • IP66 • IK10 • EX-R R2 Series • 5-Year Warranty
Package Information
| Product Model | EX-R R2 Series / 40W |
| Package Dimensions | 32.5 × 10.5 × 7.5 in (L × W × H) |
| Gross Package Weight | 13.8 lbs |
| Package Quantity | 1 Fixture |
Package dimensions and gross weight are based on the supplied product packaging information. Optional accessories and special configurations may require different packaging.
