40W AC 100-347V LED Emergency Backup Inverter for High Bay Lighting

Regular price $104.98
Shipping calculated at checkout.
Sold out

Expected to ship in 1-2 Business Days

Description

40W LED Emergency Backup Driver for Commercial Lighting

40W Constant Output 90-Minute Backup 100-347V Input 170V DC Output Automatic Self-Test

The Eco Bright Light 40W LED Emergency Backup Driver provides battery-backed emergency operation for compatible commercial LED fixtures. When normal AC power fails, the system automatically supplies constant 40W emergency output at 170V DC for at least 90 minutes. Integrated self-diagnostic testing, battery protection and wide 100-347V AC input support commercial emergency-lighting applications.

40W Constant Emergency Output

Provides constant 40W emergency output for compatible LED fixtures rated below 320W.

90-Minute Emergency Backup

Automatically provides emergency operation for at least 90 minutes when normal AC power is interrupted.

100-347V Universal Input

Wide-range AC input supports common commercial electrical systems from 100V through 347V.

Automatic Self-Diagnostics

Integrated diagnostics perform automatic monthly 30-second and annual 90-minute emergency tests.

Technical Specifications

Brand Eco Bright Light
Product Type 40W LED Emergency Backup Driver
Emergency Output Power Constant 40W
Input Voltage 100-347V AC, 50/60Hz
Maximum Input Current 200mA Max
Maximum Recharge Power 12W Max
Emergency Output Voltage 170V DC
Emergency Runtime Minimum 90 Minutes
Recharge Time Approximately 24 Hours
Battery Type Integrated Rechargeable Lithium-Ion Battery
Battery Construction Sealed, Maintenance-Free and Not Field Replaceable
Battery Protection Over-Temperature, Overcharge and Over-Discharge Protection
Compatible Fixture Power LED Fixtures Rated Below 320W
Dimming Requirement 0-10V LED Driver Required When Fixture Power Exceeds 40W
Minimum Dimming Requirement Fixture Power Must Be Below 40W at Minimum Dimming Level
Emergency Activation Automatic Transfer During Normal AC Power Failure
Monthly Self-Test Automatic 30-Second Test Every 30 Days
Annual Self-Test Automatic 90-Minute Test Every 365 Days
Housing Dimensions Approximately 12.33 × 2.33 × 1.82 in
Operating Temperature 32°F to 122°F / 0°C to 50°C
Location Rating Indoor Damp Locations and Plenum Spaces
Outdoor Use Not for Outdoor Installation
Hazardous Locations Not for Hazardous Locations
Compliance UL Listed; Listed to UL 924 and Tested to CSA C22.2 No. 141
Energy Compliance California Energy Commission Title 20 Compliant
Installation Factory or Field Installation

High-Output Emergency Lighting Performance

  • Constant 40W emergency output provides predictable backup power.
  • Provides at least 90 minutes of emergency operation.
  • Wide 100-347V input supports commercial electrical systems.
  • Supports compatible LED fixtures rated below 320W.
  • Integrated rechargeable battery simplifies installation.
  • Automatic self-diagnostics support routine emergency testing.
  • Factory or field installation supports new and retrofit projects.
  • UL 924 listing supports commercial emergency-lighting applications.

Emergency Light Output

Emergency lumen output depends on the efficacy of the connected LED fixture. The fixture manufacturer's published lumens-per-watt rating should be used together with the emergency driver's 40W output to estimate emergency illumination.

Automatic Self-Diagnostic Testing

The integrated self-diagnostic circuitry automatically performs a 30-second emergency test every 30 days and a 90-minute emergency test every 365 days. After testing, the system automatically returns to normal charging operation.

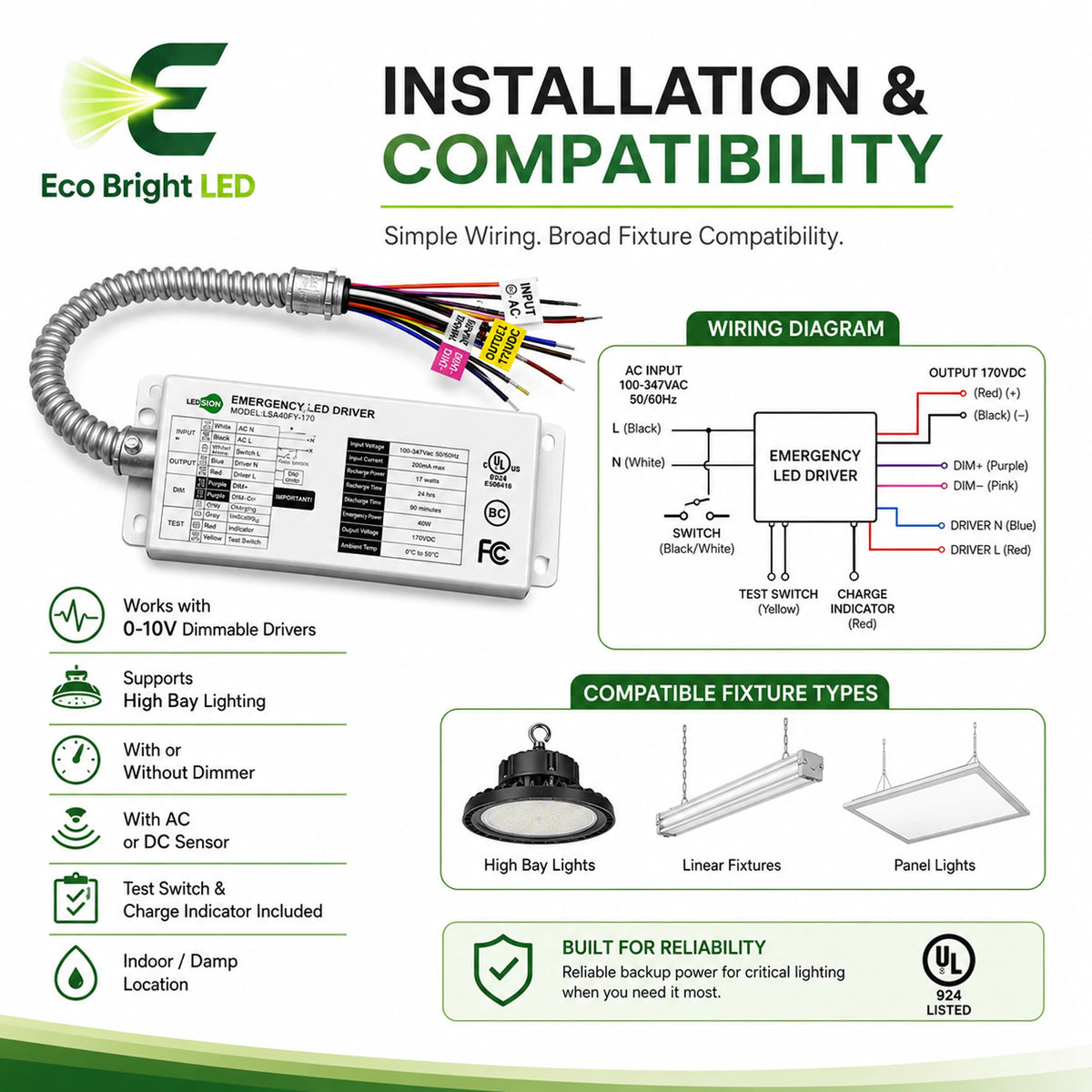

Compatible LED Fixture Requirements

The 40W emergency driver is designed for compatible LED fixtures rated below 320W. When fixture power exceeds the 40W emergency-driver output, the LED fixture must use a compatible 0-10V driver. At the minimum dimming level, fixture power must be below 40W.

Compatibility with every LED driver or fixture cannot be guaranteed. The complete end-use system should be compatibility tested before final installation.

Battery Backup and Protection

The integrated lithium-ion battery provides emergency operation during AC power loss and includes over-temperature, overcharge and over-discharge protection. The sealed battery is maintenance-free and is not designed for field replacement.

Connect the emergency driver battery pack before applying AC power. After electrical power is connected, allow the battery to charge for at least 24 hours before conducting a full-duration emergency test. During storage, charge the battery pack for 24 hours every six months.

Indoor Commercial Emergency Lighting

Designed for compatible grounded, UL-listed indoor LED fixtures requiring battery-backed emergency lighting. Suitable for indoor damp locations and compatible plenum-space installations.

40W LED Emergency Driver | LED Emergency Backup Driver | Emergency Lighting Battery Backup | 100-347V Emergency Driver | 170VDC Emergency Driver | 90 Minute Emergency Lighting | 0-10V Emergency Driver | Commercial Emergency Lighting | Self Testing Emergency Driver | UL 924 Emergency Driver

Do not use outdoors, in hazardous locations or near gas or electric heaters. Installation and servicing should be performed by qualified personnel. Disconnect both normal and emergency power sources before servicing.

Add High-Output Emergency Backup to Compatible LED Fixtures

Choose Eco Bright Light for constant 40W emergency output, 90-minute operation, 100-347V compatibility, automatic self-diagnostic testing and flexible factory or field installation.

Package Information

Package Size 16 × 12 × 10 in
Pack Quantity 10 Emergency Backup Drivers
Package Weight 30 lbs
