Round High Bay Explosion Proof LED Light C1D2 – 60W 8,400lm 5000K 120-277V
Round High Bay Explosion Proof LED Light C1D2 – 60W 8,400lm 5000K 120-277V is backordered and will ship as soon as it is back in stock.
Round High Bay Explosion Proof LED Light C1D2 – 60W 8,400lm 5000K 120-277V is backordered and will ship as soon as it is back in stock.
Description
Description

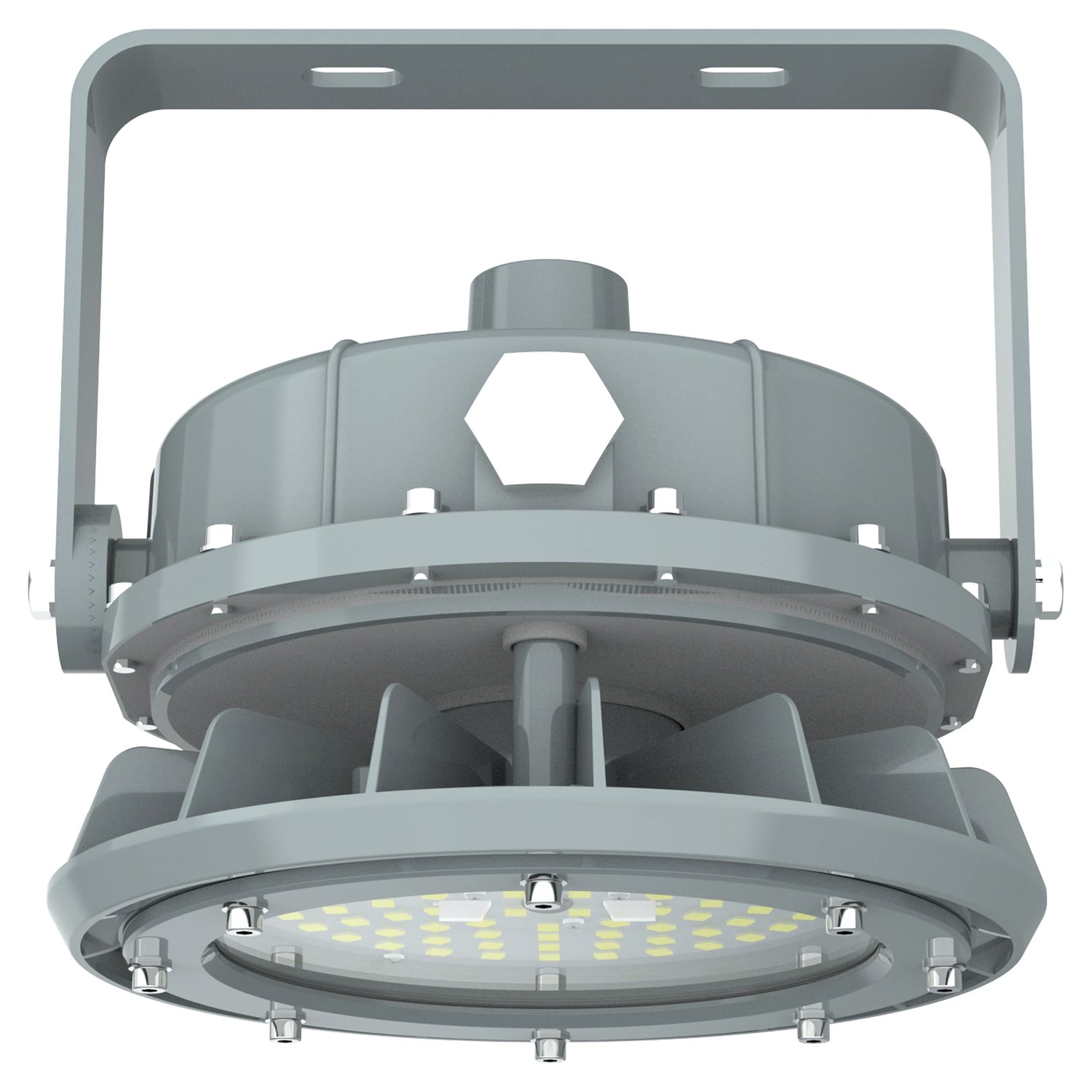

60W LED Explosion Proof High Bay Light 5000K
The Eco Bright Light 60W LED Explosion Proof High Bay delivers 8,400 lumens of bright 5000K daylight for hazardous industrial environments. Designed for Class I Division II locations, this compact B2 Series fixture combines efficient LED performance, rugged copper-free aluminum construction and IP66 protection for dependable illumination.
8,400 Lumens
High-efficiency 60W LED output with 140 lm/W performance and 120° wide light distribution.
Class I Division II
Designed for hazardous locations where flammable gases or vapors may be present under abnormal conditions.
Industrial Construction
Copper-free aluminum housing, stainless steel hardware and IP66 dust and water protection.
Compact B2 Design

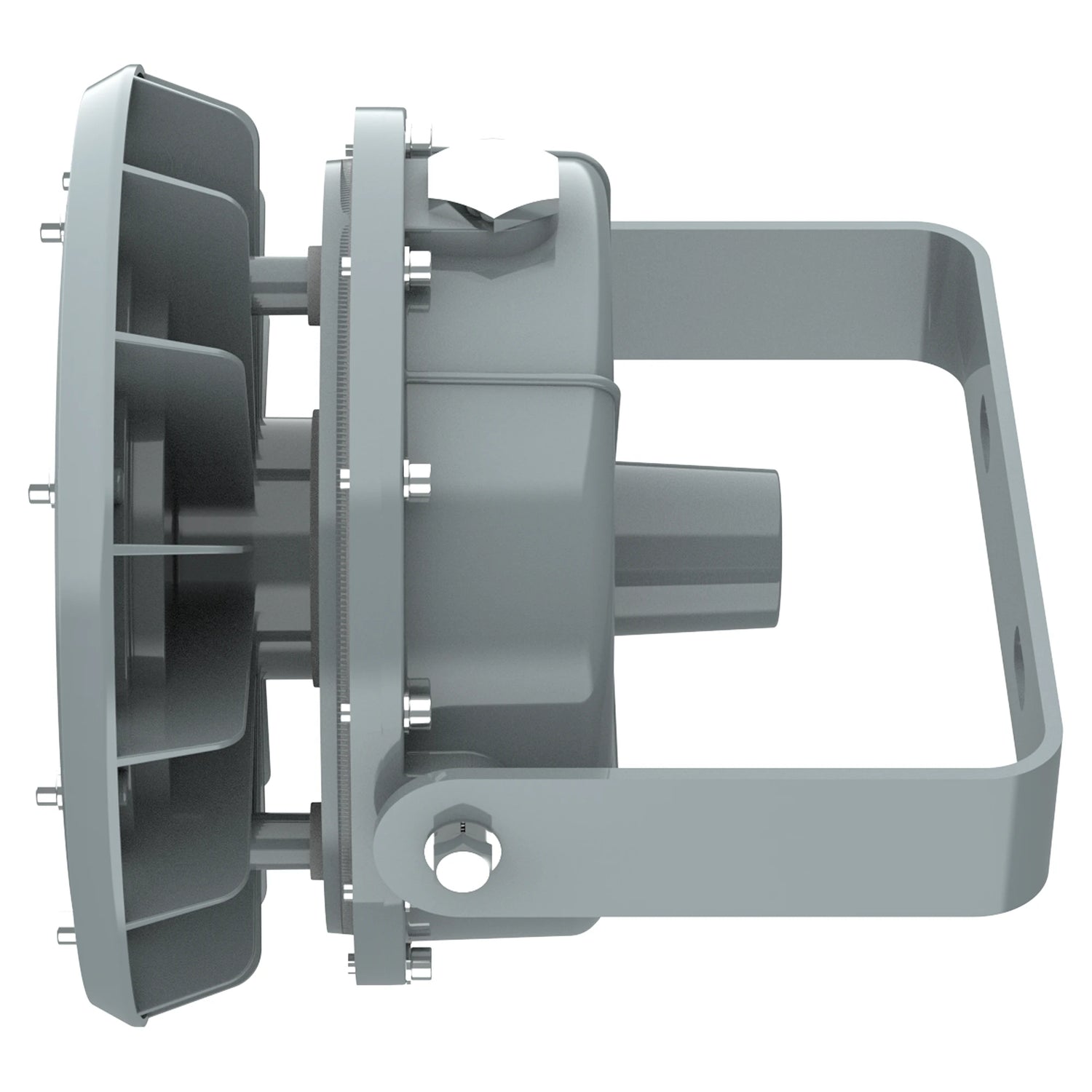

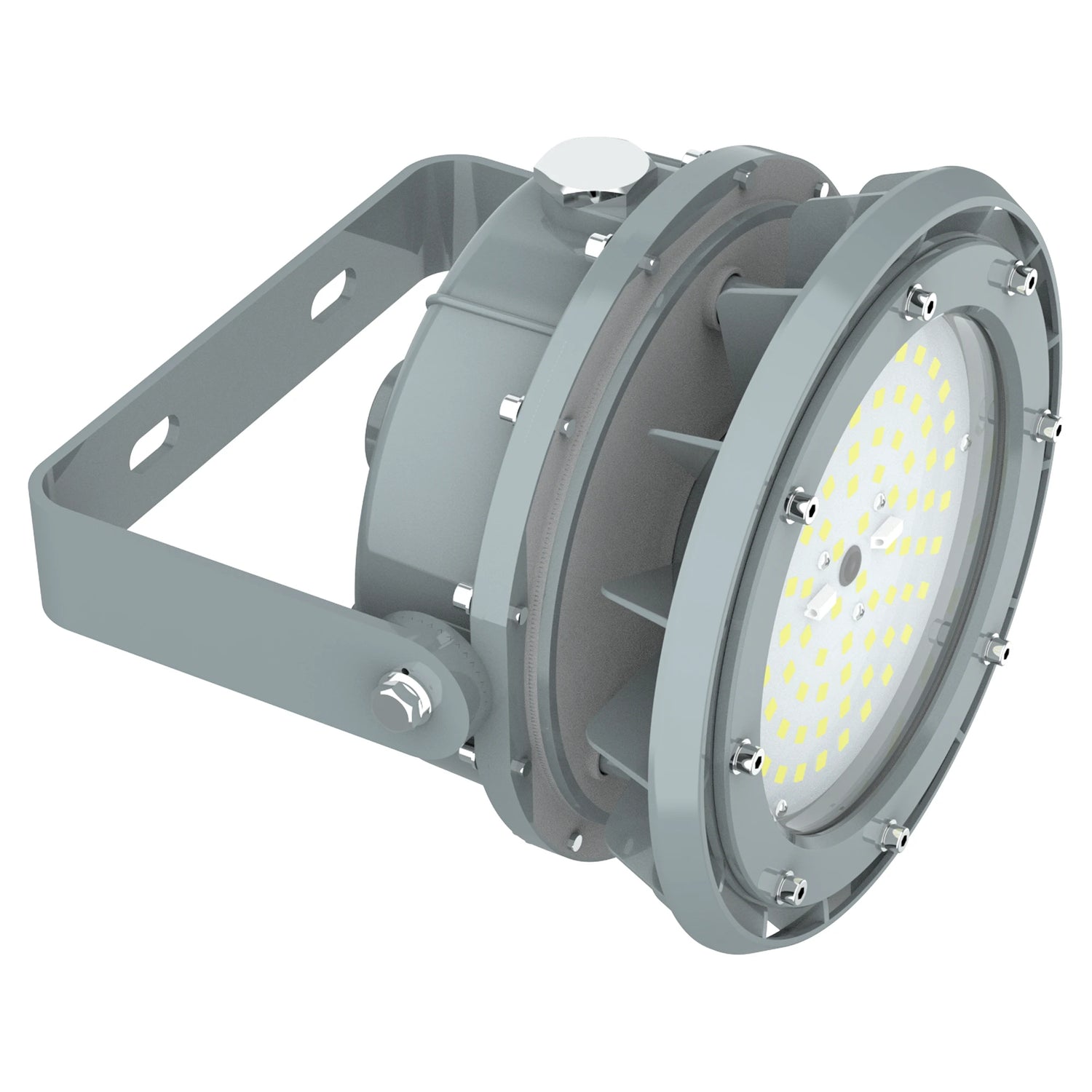

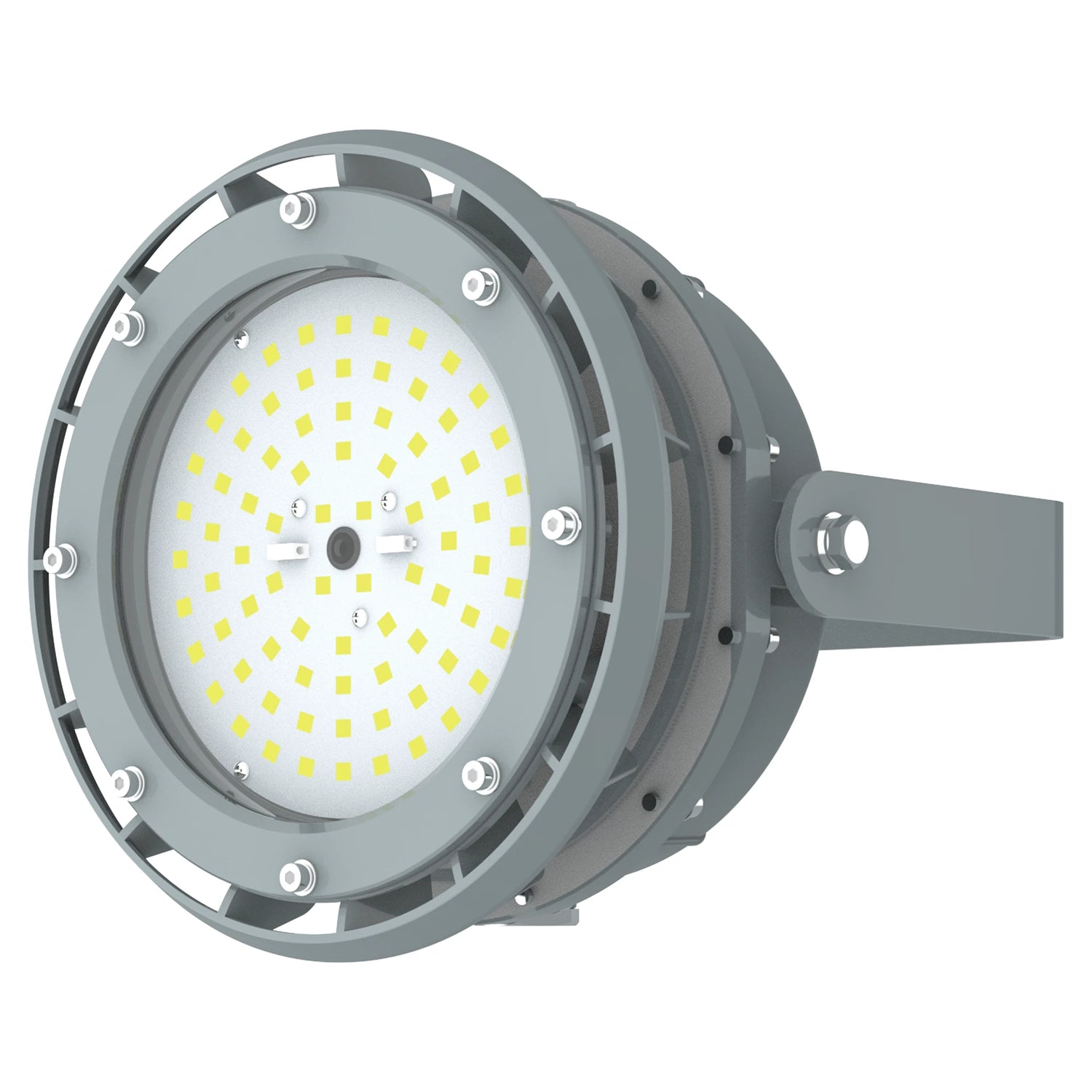

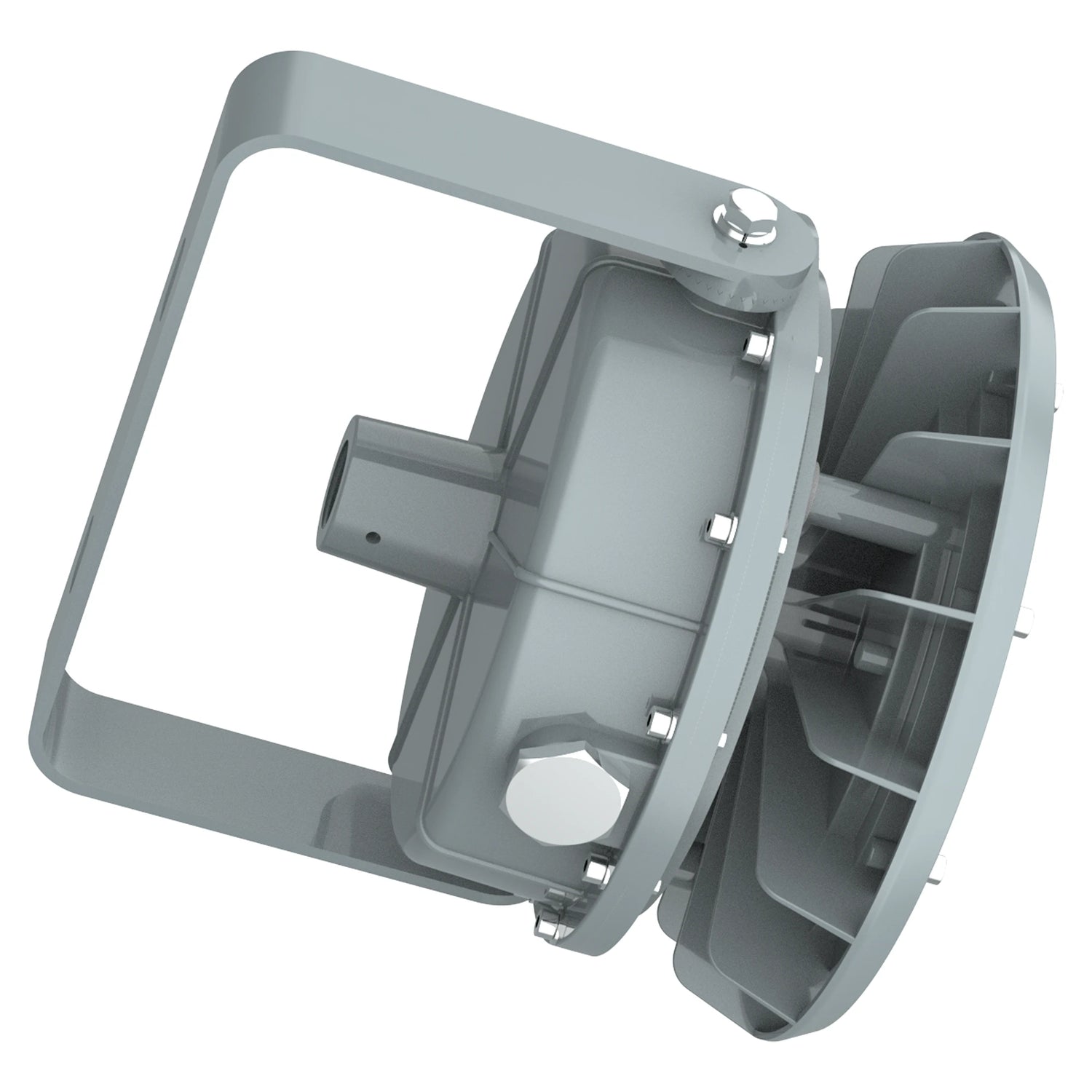

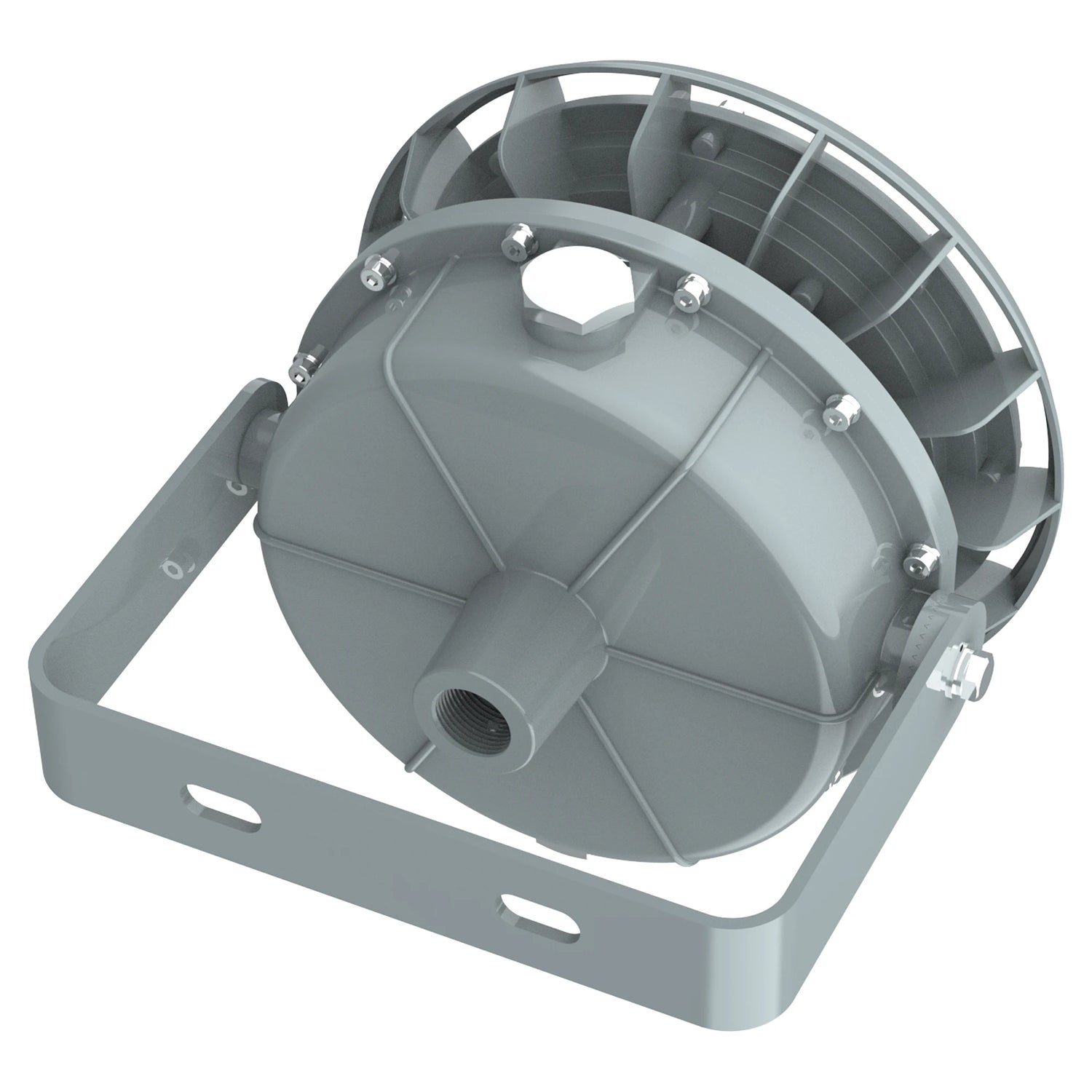

Space-efficient round housing with adjustable mounting bracket and reliable thermal management.
Technical Specifications
| Brand | Eco Bright Light |
| Series | B2 Series |
| Fixture Type | LED Explosion Proof High Bay |
| Power | 60W |
| Lumen Output | 8,400 Lumens |
| Luminous Efficiency | 140 lm/W |
| Color Temperature | 5000K Daylight White |
| CRI | >70 |
| Input Voltage | AC 120-277V |
| Frequency | 50/60Hz |
| Power Factor | >0.95 |
| Beam Angle | 120° Wide Flood |
| Dimming | 0-10V (Configuration Dependent) |
| Safety Rating |
Class I Division II, Groups A, B, C & D; Class II Division I, Groups E, F & G; Class II Division II, Groups F & G; Class III |
| Additional Zone Rating |
Class I Zone 2, Group IIC; Class II Zone 21, Group IIIC |
| IP Rating | IP66 |
| Impact Rating | IK08 |
| Housing Material | Copper-Free Aluminum |
| Lens Material | Tempered Glass |
| Hardware | Stainless Steel |
| Fixture Color | Gray RAL7040 |
| Mounting Options | Surface / Pendant / Trunnion (Compatible Accessories Required) |
| Cable Entry |
Side: 3/4" NPT; Top: 3/4" NPT |
| Emergency Backup | No Emergency Function |
| Compliance Standards | UL 844 / UL 1598 / UL 1598A |
| Salt Spray Resistance | 1,000 Hours |
| Lumen Maintenance | L70 >150,000 Hours at 55°C |
| Warranty | 5 Years |
Key Benefits
- 8,400 lumens of bright 5000K illumination.
- Efficient 140 lm/W LED performance.
- Class I Division II hazardous location design.
- IP66 protection against dust and water.
- Compact copper-free aluminum housing.
- Multiple mounting configurations available.
Applications
Suitable for industrial and hazardous locations requiring reliable, efficient illumination in demanding operating environments.
- Petrochemical Refineries
- Oil & Gas Processing Facilities
- Chemical Manufacturing Plants
- Wastewater Treatment Facilities
- Industrial Storage Areas
- Power Generation Facilities
Package Information
| Package Dimensions (L × W × H) | 14.17 × 13.94 × 10.24 in |
| Net Weight | 7.72 lbs (3.5 kg) |
| Gross Weight | 11.02 lbs (5.0 kg) |
| Quantity per Carton | 1 pc |
Reliable 60W Explosion Proof LED High Bay
8,400 Lumens • 5000K • 140 lm/W • Class I Division II • AC 120-277V • IP66 • 5-Year Warranty
