4W Edge-Lit Red Exit Sign for Commercial Egress Lighting
4W Edge-Lit Red Exit Sign for Commercial Egress Lighting is backordered and will ship as soon as it is back in stock.
4W Edge-Lit Red Exit Sign for Commercial Egress Lighting is backordered and will ship as soon as it is back in stock.
Description
Description

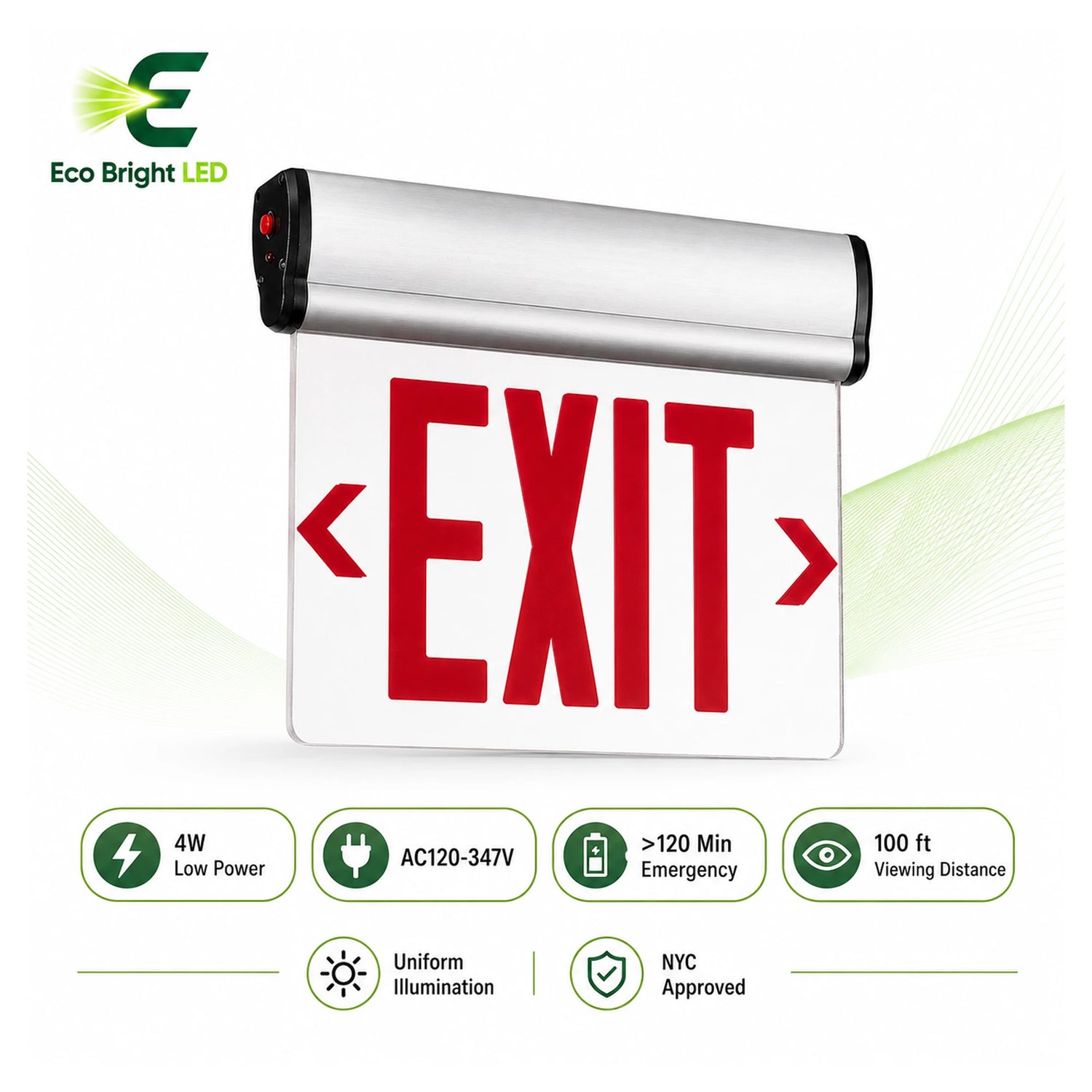

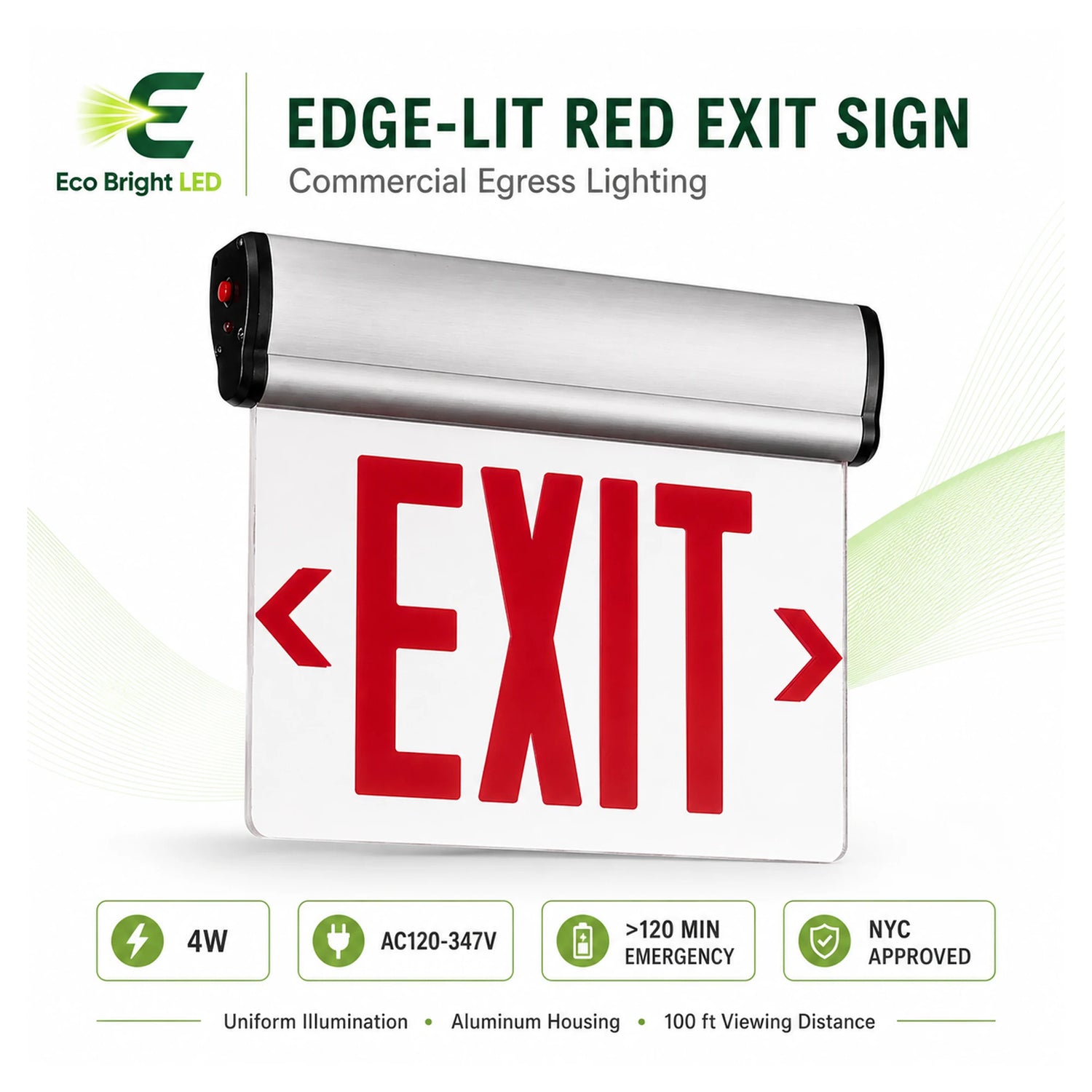

4W Edge-Lit Red Exit Sign for Commercial Egress Lighting
The Eco Bright Light Edge-Lit Red Exit Sign combines a slim architectural profile with clear commercial egress identification. Its durable aluminum housing, acrylic display panel and large red 8-inch EXIT lettering provide excellent visibility, while the integrated rechargeable battery maintains emergency illumination for more than 120 minutes when normal AC power is interrupted.
8-Inch EXIT Lettering
Large red EXIT letters with a 1-inch stroke provide clear identification at viewing distances up to 100 feet.
120+ Minute Backup
The integrated rechargeable battery maintains the illuminated EXIT display for more than 120 minutes during an AC power failure.
Double-Face Visibility
The double-face configuration provides clear exit identification for occupants approaching from opposite directions.
Flexible Installation
Wall, ceiling, end, surface and compatible recessed mounting options support a wide range of commercial egress layouts.
Technical Specifications
| Brand | Eco Bright Light |
| Product Type | Edge-Lit Red LED Emergency Exit Sign |
| Face Configuration | Double Face |
| EXIT Legend Color | Red |
| Letter Height | 8 in |
| Letter Stroke | 1 in |
| Reference Viewing Distance | Up to 100 ft |
| Input Power | 4W |
| Input Voltage | 120-347V AC, 50/60Hz |
| Input Current | Approximately 0.06A |
| Efficiency / Power Factor | Approximately 0.96P |
| Listed Output Power | 1W |
| LED Configuration | 8 Red LEDs |
| Emergency Runtime | More Than 120 Minutes |
| Recharge Time | Approximately 24 Hours |
| Battery Type | Rechargeable Nickel-Cadmium (Ni-Cd) Battery |
| Battery Rating | 3.6V / 600mAh |
| Housing Material | Durable Aluminum |
| Display Panel | High-Grade Acrylic |
| Directional Arrows | Field-Installable Left, Right or Dual Arrows |
| Test Function | Integrated Manual Test Switch |
| Status Indicator | Integrated AC / Charge Indicator |

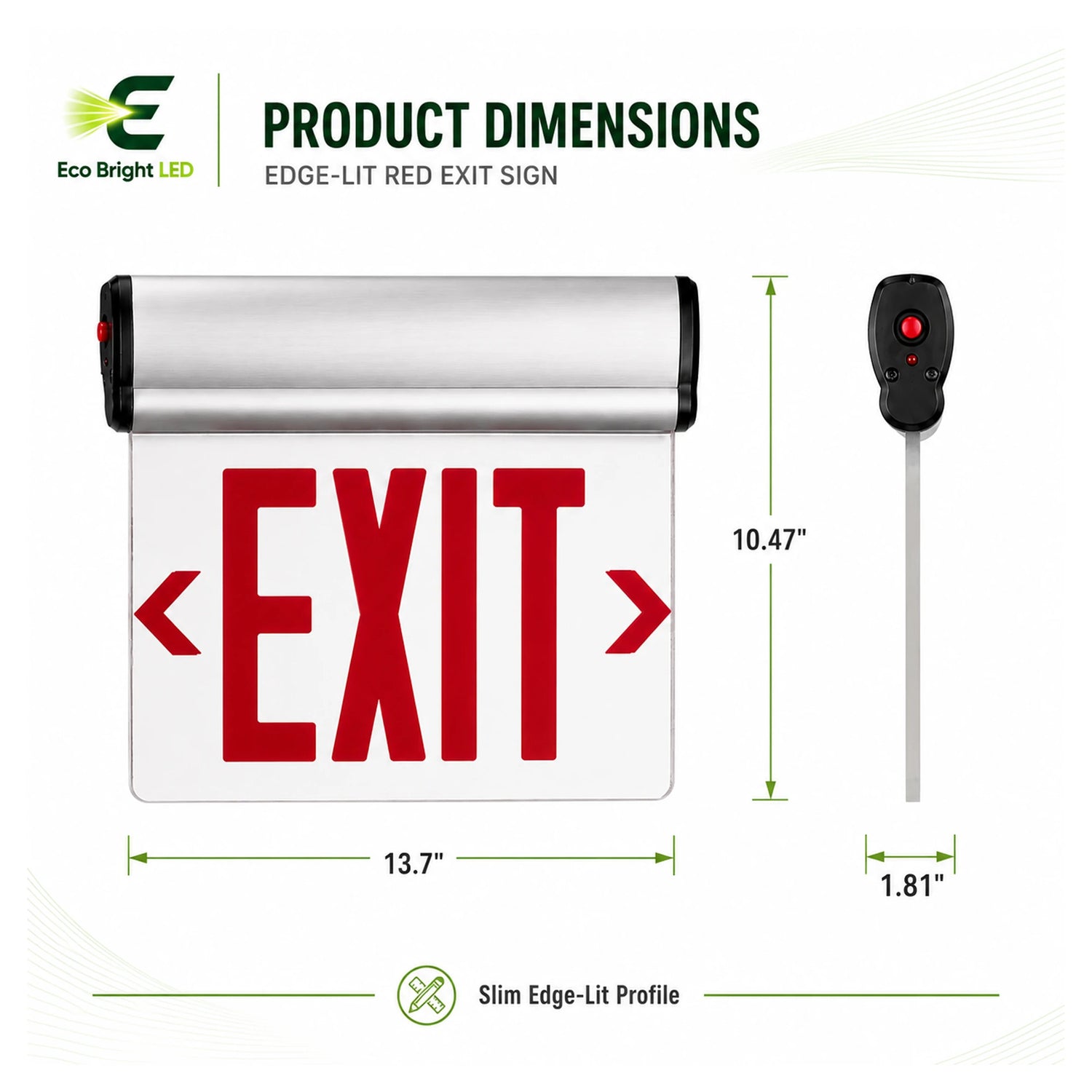

| Fixture Dimensions | Approximately 13.7 × 10.47 × 1.81 in |
| Mounting Options | Wall, Ceiling, End, Surface and Compatible Recessed Mounting |
| Electrical Connection | Junction Box or Surface Conduit Connection |
| Location Rating | Indoor Damp Locations |
| Outdoor Use | Not Approved for Outdoor Installation |
| Compliance | UL 924, NEC, OSHA and NFPA 101 Life Safety Code |
| Local Approval | New York City Approved |
| CEC Status | Not CEC Compliant |

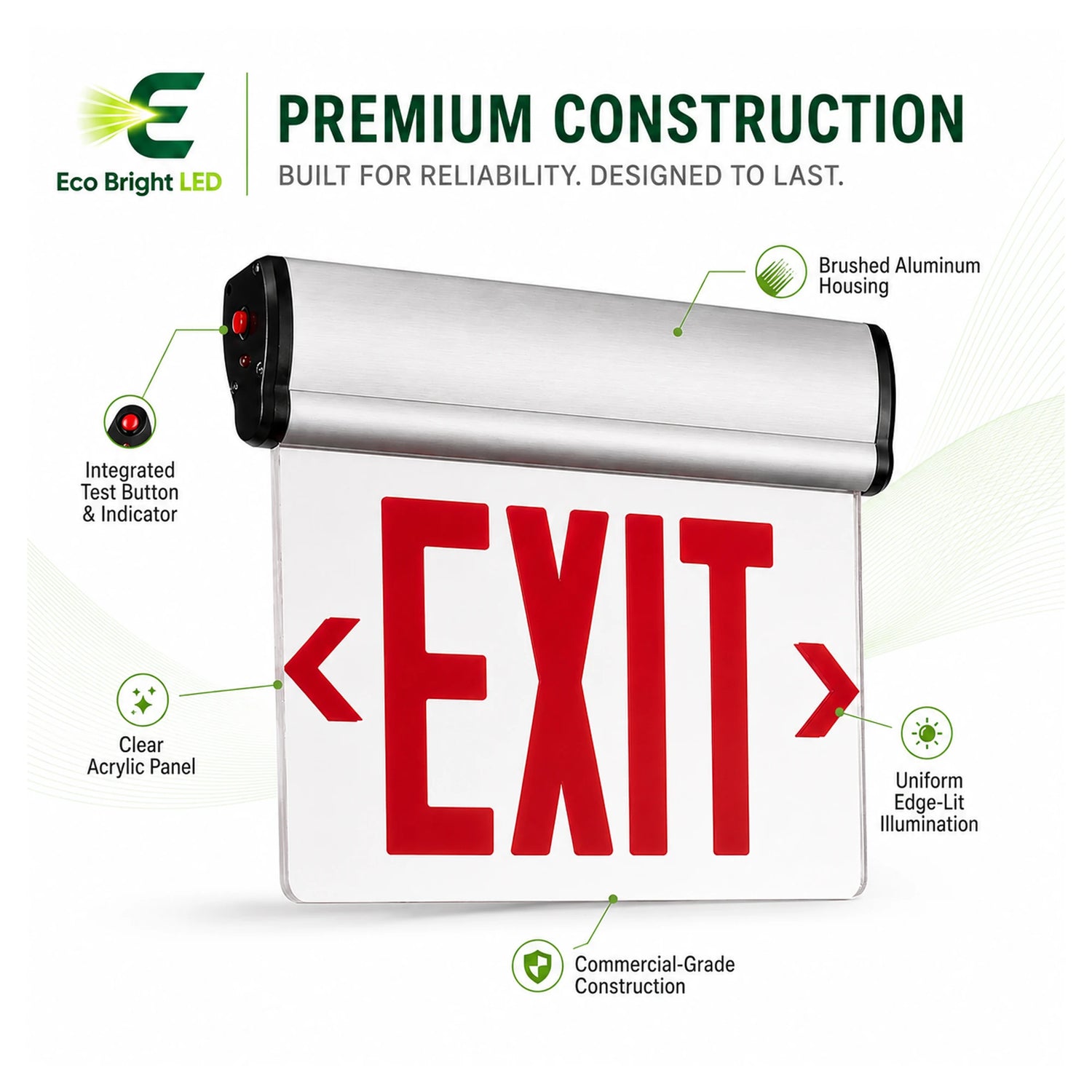

Architectural Edge-Lit Design
- Edge-lit acrylic display creates clear, uniform EXIT illumination.
- Red 8-inch EXIT lettering improves long-distance visibility.
- Double-face configuration supports two-way viewing.
- Durable aluminum housing provides a clean commercial appearance.
- Battery backup operates for more than 120 minutes.
- Field-installable arrows support left, right or dual directions.
- 120-347V AC input supports commercial electrical systems.
- Multiple mounting options simplify new and retrofit installations.
Directional and Double-Face Visibility
Configure the field-installable directional arrows for left, right or dual-direction egress identification. The double-face display allows the red EXIT legend to remain visible from opposite directions, making the fixture well suited for corridors, intersections, open areas and ceiling-mounted exit routes.
Battery Backup and Testing
During normal operation, the unswitched AC supply illuminates the EXIT display and maintains the internal rechargeable battery. If utility power fails, the LEDs automatically switch to battery operation for more than 120 minutes. Press the integrated TEST switch to verify emergency operation. During testing, the AC indicator turns off and the LEDs operate from battery power. Releasing the TEST switch returns the sign to normal AC operation.

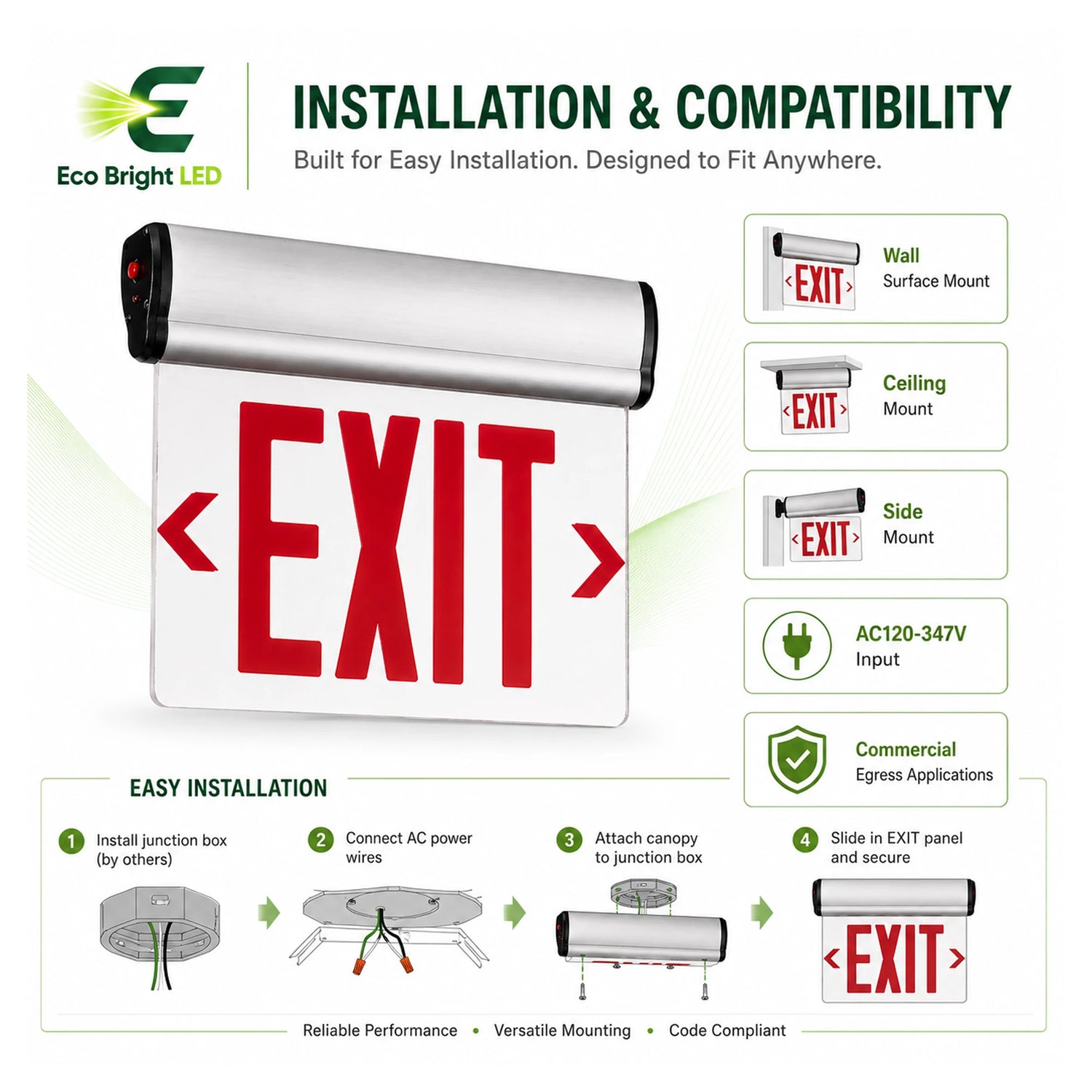

Flexible Commercial Installation
Install the fixture using wall, ceiling, end, surface or compatible recessed mounting according to the project layout. For junction-box installations, the supplied mounting hardware supports connection to common electrical boxes. Top and side conduit knockouts also support compatible surface-wiring installations.
Provide a continuous unswitched AC supply of the rated voltage. Allow the rechargeable battery to charge for at least 24 hours after electrical power is connected before relying on normal battery-backup operation.
Installation and Safety
Disconnect AC power and unplug the battery before installation or servicing. Proper grounding is required where applicable. This fixture is intended for indoor use and must not be installed outdoors, near gas or electric heaters or where unauthorized personnel may tamper with the equipment. Installation and servicing should be performed by qualified personnel in accordance with applicable codes and ordinances.

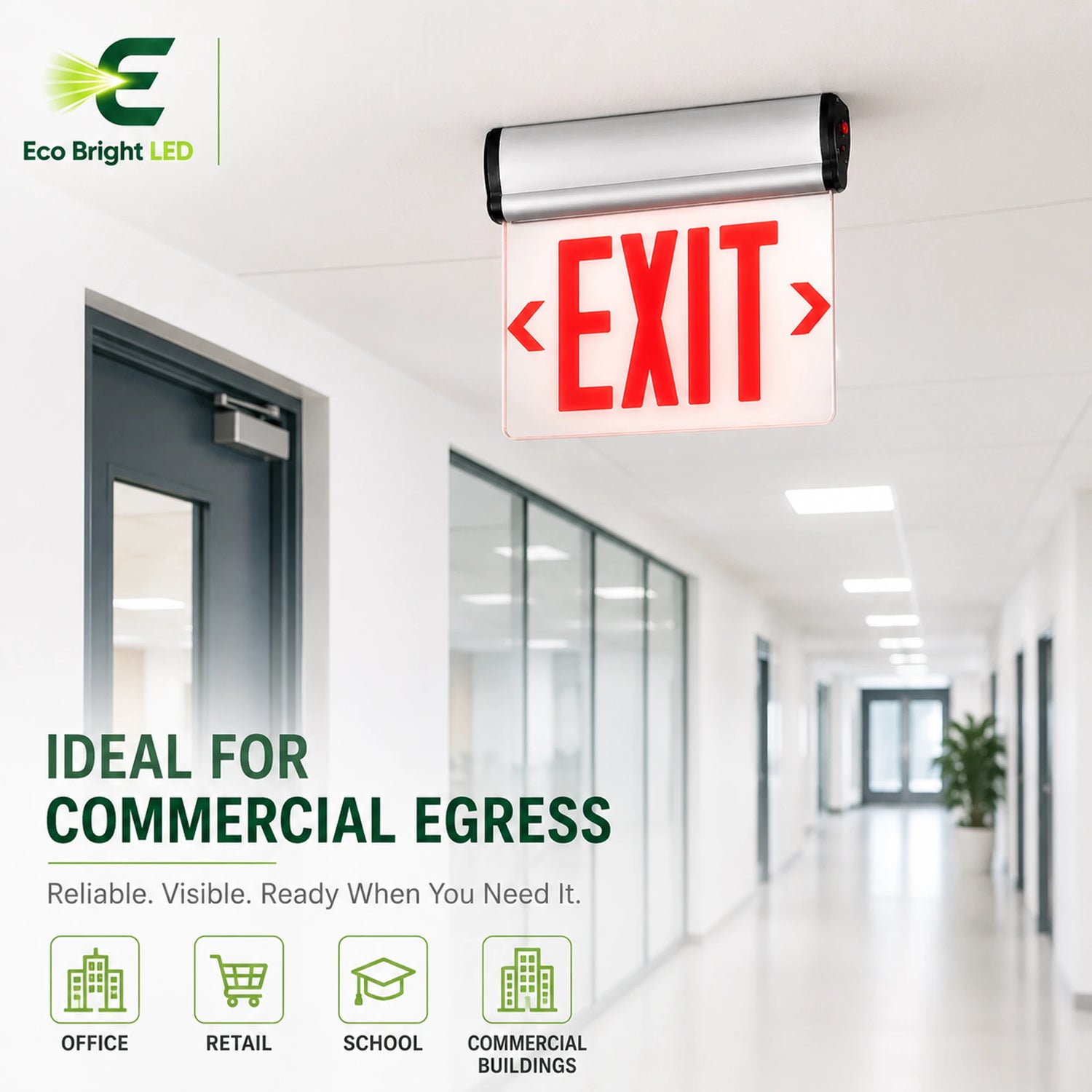

Commercial Egress Lighting Applications
Ideal for New York commercial projects, office buildings, retail stores,
schools, colleges, universities, hospitals, clinics, hotels, government
buildings, libraries, corridors, stairwells and other indoor commercial
or institutional egress routes.
Edge-Lit Exit Sign | Red LED Exit Sign |
Double-Face Exit Sign | Battery Backup Exit Sign |
120 Minute Exit Sign | 120-347V Exit Sign |
8 Inch Exit Sign | Damp Location Exit Sign |
Commercial Egress Lighting | New York Exit Sign |
UL 924 Exit Sign
Upgrade Commercial Egress Lighting with Edge-Lit Design
Choose Eco Bright Light for large red EXIT lettering, double-face visibility, extended 120+ minute battery backup, durable aluminum construction and flexible commercial mounting.
Package Information
| Package Size | 19 × 24 × 15 in |
| Pack Quantity | 10 Fixtures |
| Package Weight | 44 lbs |
