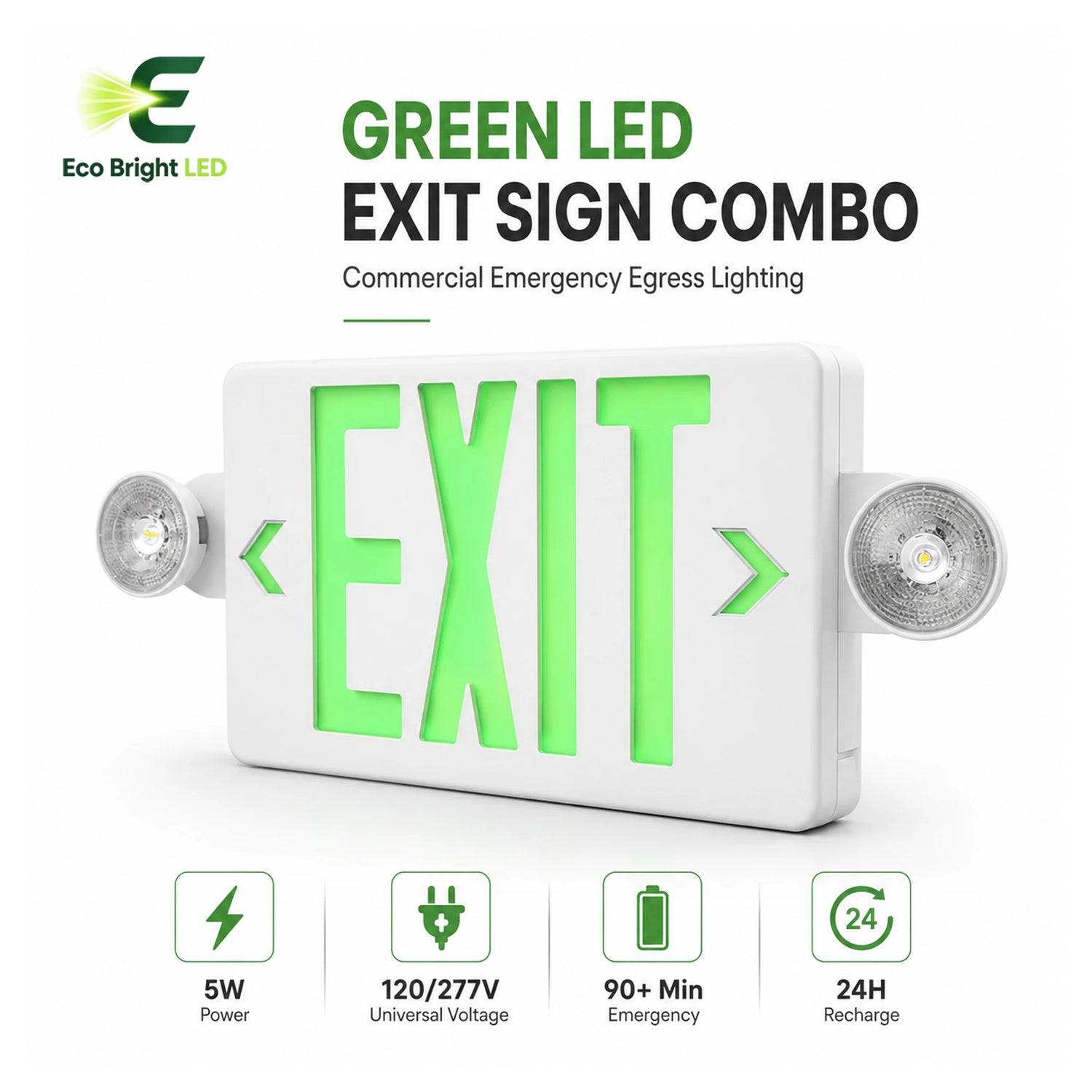

5W Green LED Exit Sign Combo for Commercial Egress
The Eco Bright Light Green LED Exit Sign Combo combines illuminated exit identification and emergency lighting in one compact fixture. A bright green EXIT display provides clear egress identification, while two adjustable LED emergency heads can be directed toward required exit and emergency lighting areas. The integrated rechargeable battery provides more than 90 minutes of emergency operation when normal AC power is interrupted.
Bright Green EXIT Display
Twelve green LEDs provide clear and energy-efficient EXIT identification.
90+ Minute Battery Backup
The integrated rechargeable battery provides more than 90 minutes of emergency operation during AC power loss.
Two Adjustable LED Heads
Position the two emergency light heads to direct illumination where it is needed.
Single or Double Face
The fixture can be configured for single-sided or double-sided EXIT identification.
Technical Specifications
| Brand | Eco Bright Light |
| Product Type | Green LED Emergency Exit Sign Combo |
| Input Power | 5W |
| Input Voltage | 120V / 277V AC |
| Input Current | Approximately 0.04A |
| Efficiency / Power Factor | Approximately 0.86P |
| EXIT Display Color | Green |
| EXIT Sign LEDs | 12 Green LEDs |
| Emergency Light Heads | Two Adjustable LED Heads |
| Output Wattage | 1W-2W |
| Emergency Runtime | More Than 90 Minutes |
| Recharge Time | Approximately 24 Hours |
| Battery Type | Integrated Rechargeable Lead-Acid Battery |
| Battery Rating | 3.6V / 800mAh |
| Face Configuration | Single- or Double-Face Installation |
| Directional Arrows | Removable Left and Right Chevron Arrows |

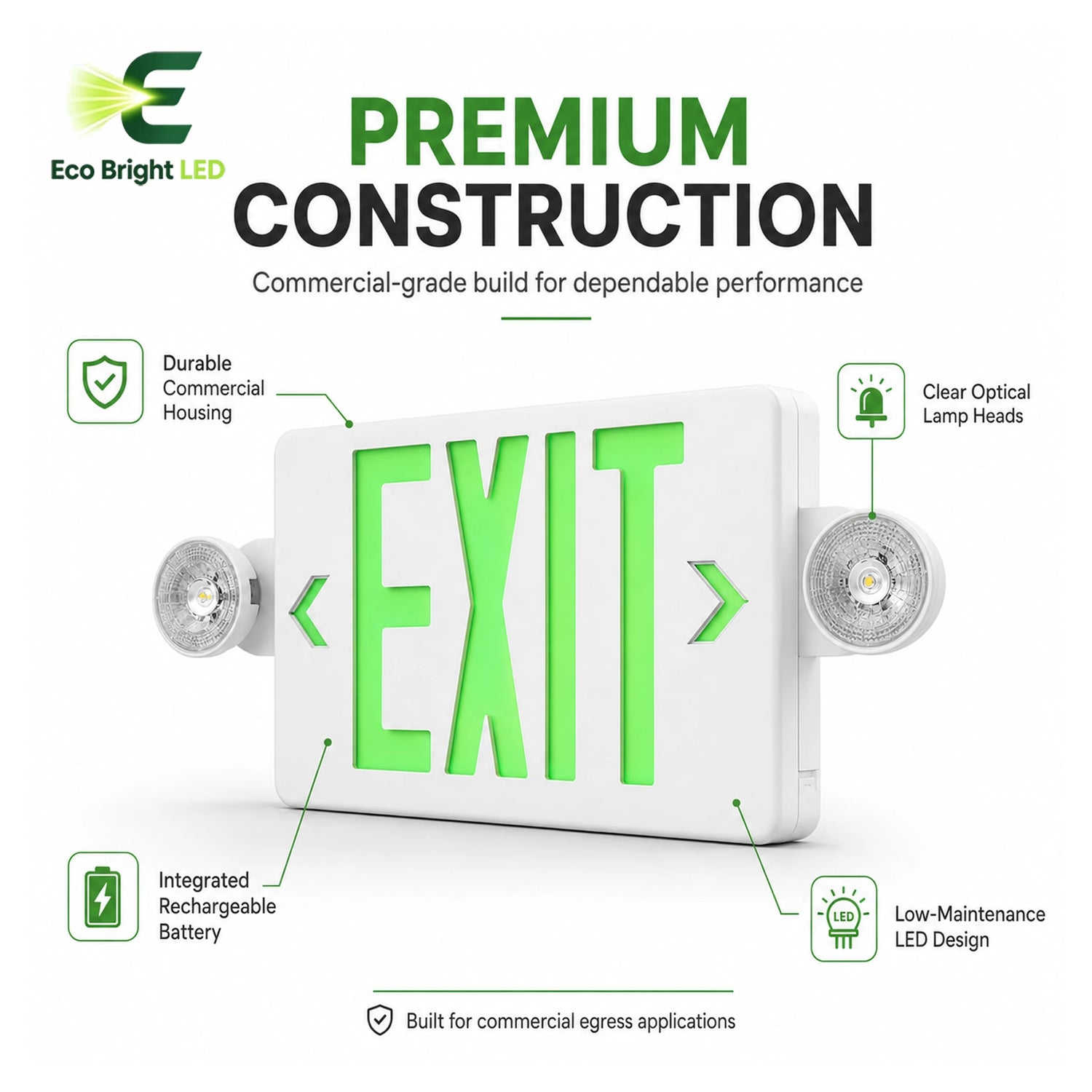

| Housing Material | Flame-Retardant Thermoplastic |
| Test Function | Integrated Manual Test Button |
| Charge Indicator | Integrated Charge Indicator |

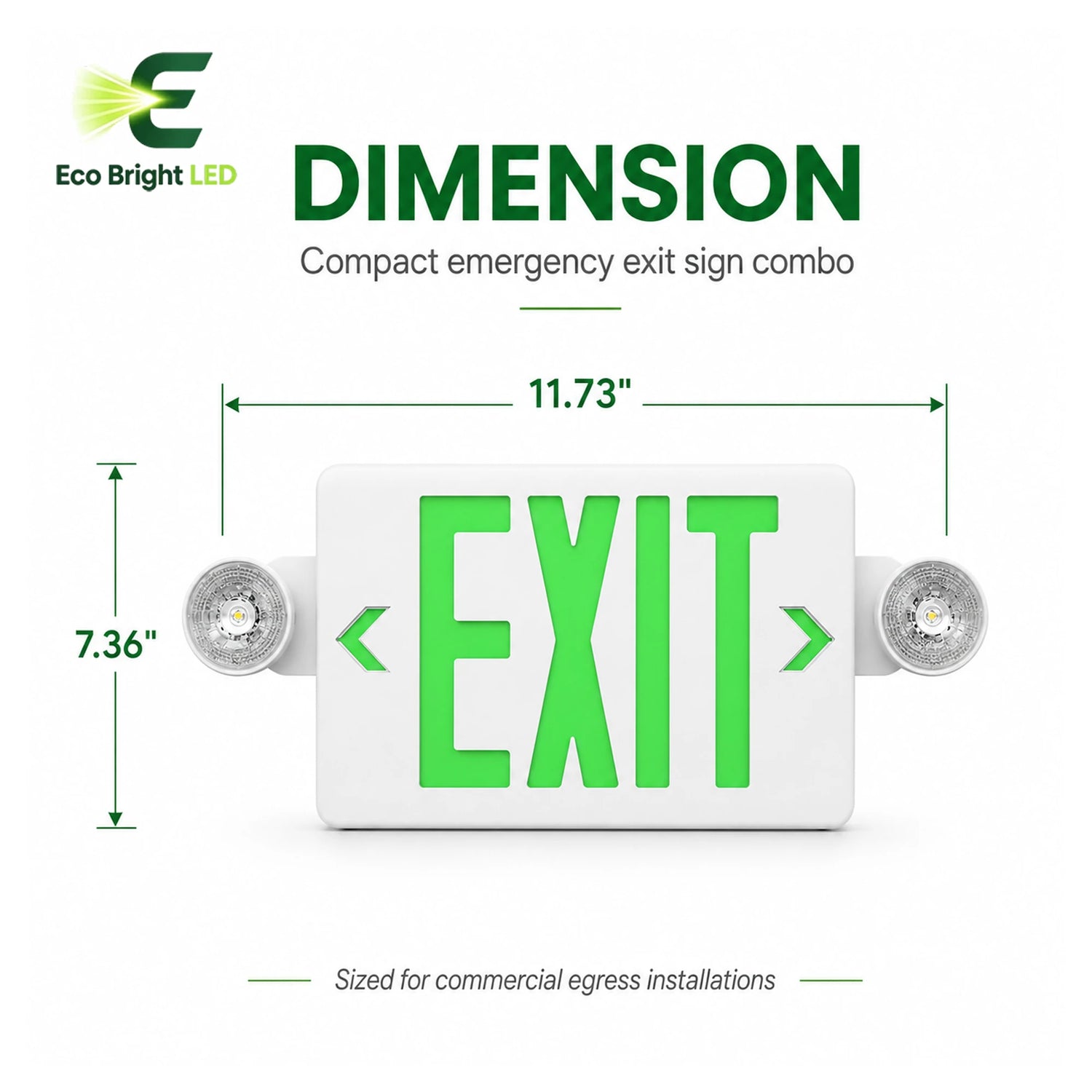

| Central Housing Width | Approximately 11.73 in |
| Overall Dimensions | Approximately 16.93 × 7.36 × 1.77 in |
| Mounting Options | Wall Mount or Ceiling Mount |
| 120V Wiring | Black Line Lead and White Neutral Lead |
| 277V Wiring | Red Line Lead and White Neutral Lead |
| Ground Connection | Green Ground Lead |
| Installation Location | Indoor Use Only |
| Safety Listing | UL 924 Listed |

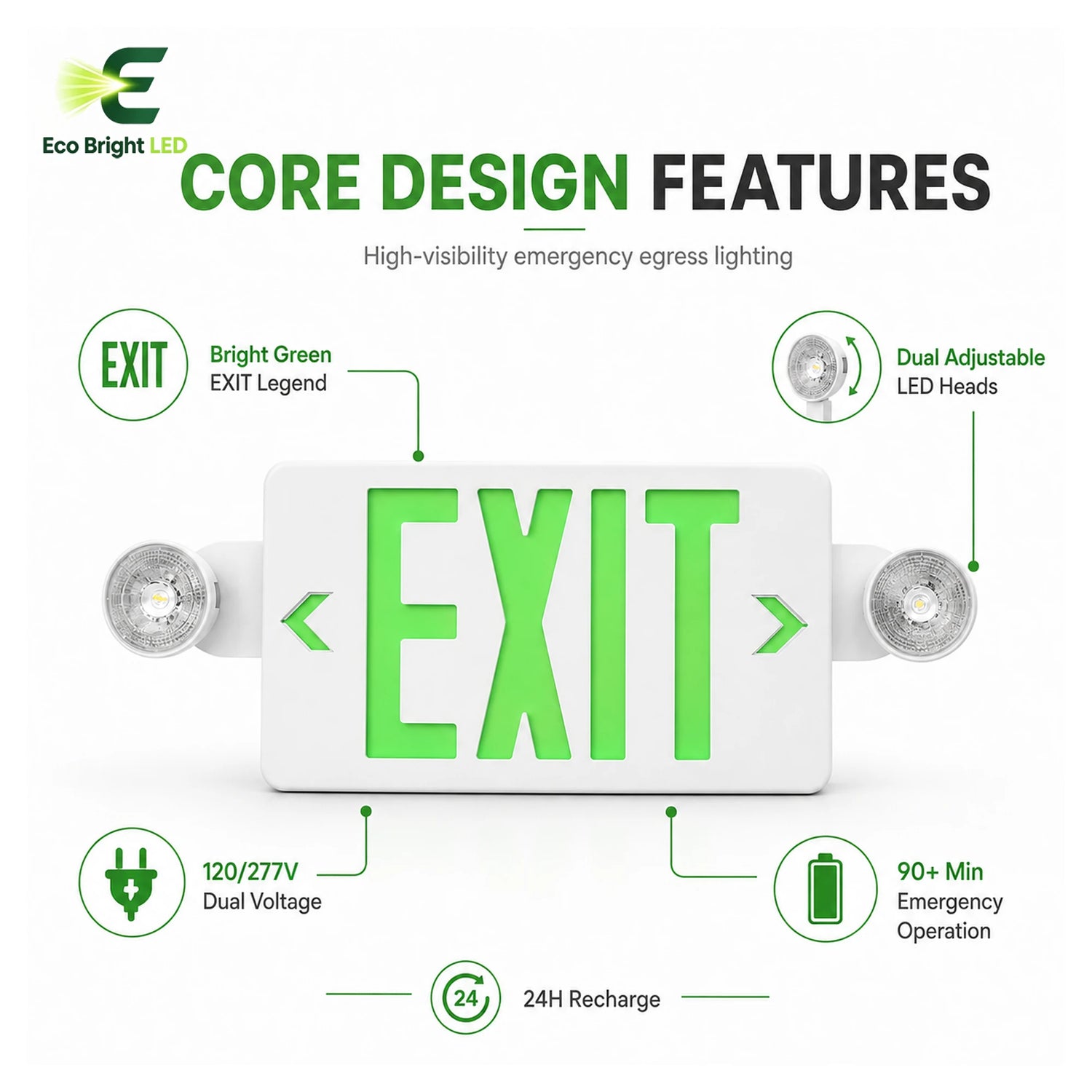

Green EXIT Identification and Emergency Lighting
- Combines illuminated EXIT identification and emergency lighting.
- 12 green LEDs provide clear EXIT illumination.
- Single- or double-face configuration supports different installations.
- Removable arrows allow directional EXIT indication.
- Two adjustable LED heads provide directional emergency lighting.
- Battery backup operates for more than 90 minutes.
- 120V / 277V dual-voltage operation supports common electrical systems.
- Flame-retardant thermoplastic construction supports durable operation.
Configurable Exit Direction
The EXIT display includes removable directional chevrons that can be configured according to the required exit direction. The fixture can also be configured for single-face or double-face viewing depending on the installation.
Adjustable Emergency Light Heads
Two adjustable LED emergency light heads allow illumination to be directed according to the installation layout. Position the heads after installation to provide the required emergency light coverage.
90+ Minute Battery Backup
The built-in rechargeable battery provides more than 90 minutes of emergency operation when normal AC power is interrupted. The battery requires approximately 24 hours for a full recharge.

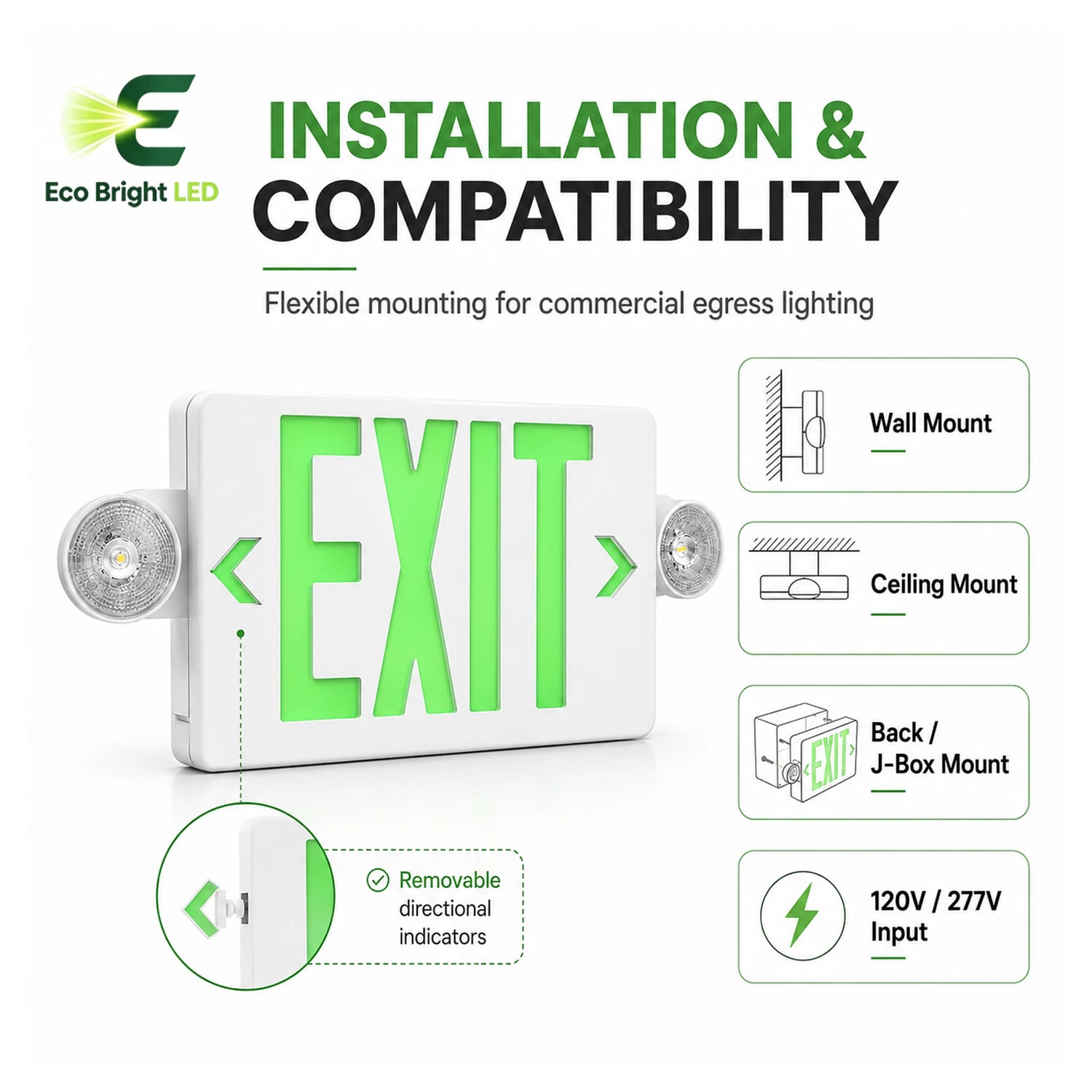

Wall or Ceiling Installation
The fixture supports both wall and ceiling mounting. For 120V service, connect the black line conductor and white neutral conductor. For 277V service, connect the red line conductor and white neutral conductor. Connect the green grounding conductor and securely cap any unused leads.
Disconnect electrical power before installation or servicing. After electrical power is connected, allow the battery to charge for at least 24 hours before relying on normal battery-backup operation.
Installation and Safety
This fixture is intended for indoor use only. Do not use outdoors, allow the power supply cord to contact hot surfaces or mount the unit near gas or electric heaters. Proper grounding is required where applicable. Installation and servicing should be performed by qualified personnel in accordance with applicable installation codes.
EXIT Guidance and Emergency Lighting in One Fixture
Choose Eco Bright Light for green LED EXIT identification, two adjustable emergency heads, 90+ minute battery backup, 120V / 277V compatibility and flexible wall or ceiling installation.
Package Information
| Package Size | 16 × 16 × 16 in |
| Pack Quantity | 12 Fixtures |
| Package Weight | 32 lbs |
